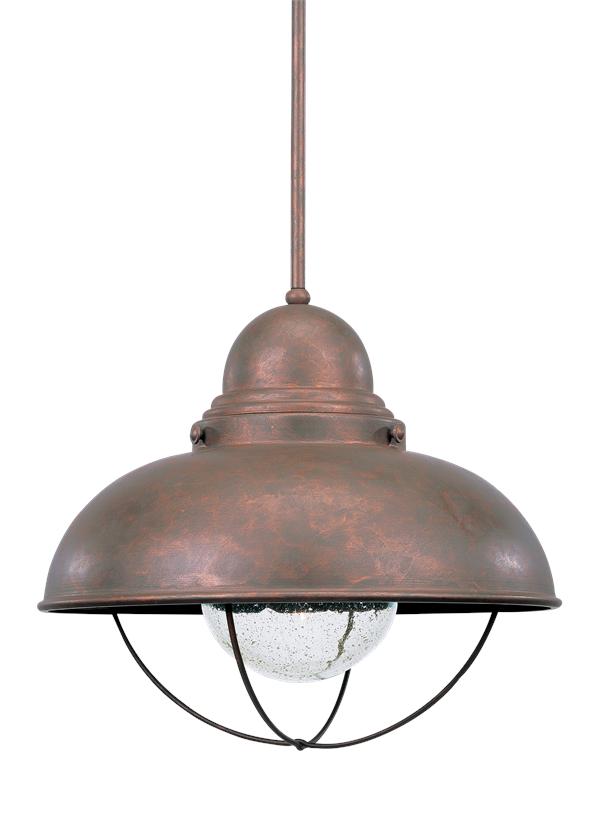

6658-44: One Light Outdoor Pendant

	Collection: Sebring
	Single Light Weathered Copper Finished Pendant with Clear Seeded Glass.
	Eye-catching style, in a weathered copper finish over aluminum. Clear seeded glass adds just the right sparkle. Includes three interconnecting stems, 12" of chain, and canopy
	For Additional Stems, Order 9199-44; Includes Three Interconnecting 12 inch stems, chain and canopy
	UPC #:785652066580
	Finish: Weathered Copper (44)

Dimensions:


Diameter:	16 3/4''
Height:	15''

Weight:

5 lbs.

Overall Height:

67 1/4''

Wire:

120'' (color/Brown)

Chain:

12''

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulb Appearance:

Clear

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Clear bulb(s) recommended for this fixture
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Weathered Copper

1 Chain - Steel - Weathered Copper

3 12" Stem - Steel - Weathered Copper

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (HC-838)
French (F-005)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Glass

Clear Seeded

G500525-67

8 1/4

6 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/4			5 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6658-44	1	785652066580	20.25	20	18	4.219	15.1	250	Yes
NJ Pallet		12		48	40	72	80	181.2		No
NV Pallet		18		48	40	62.75	69.722	156.6		No
