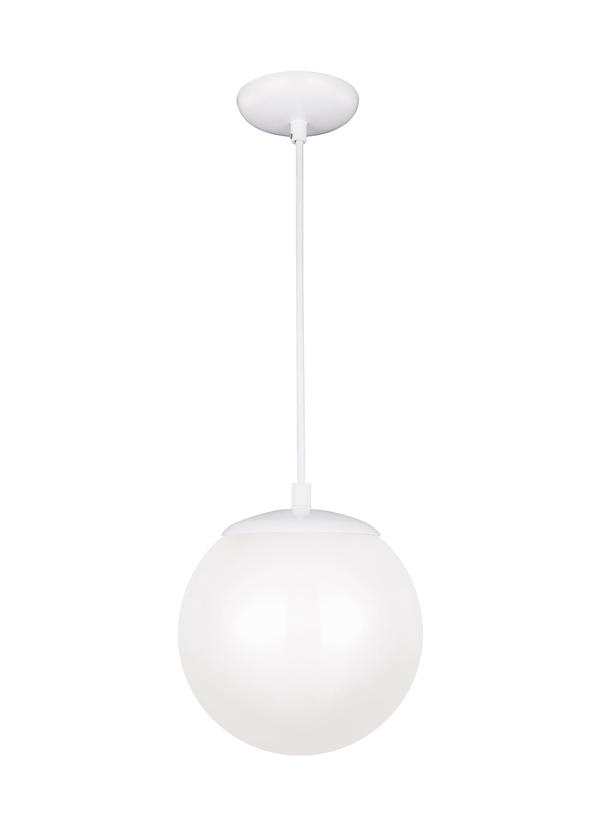

601893S-15: Small Pendant LED

	Collection: Leo - Hanging Globe
	LED Pendant Light White with Opal Glass.
	Versatile Lighting expressions using Pendant Lighting. Decorate with one light fixture finished in White with Opal Opaque glass. Hangs with sleek white wire for a retro appeal.
	UPC #:785652064647
	Finish: White (15)

Dimensions:


Diameter:	8''
Height:	8 1/2''

Weight:

2.2 lbs.

Overall Height:

56''

Wire:

54'' (color/White)

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Bulb Type:

Modules

Bulb Base:

Integrated

Volts:

120

Watts:

Watts Consumed:

Watts Rated:

Hours Rated:

50000

Lumens:

700

Bulb Temp:

3000 °K

CRI:

Features:

This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
Advanced LED technology that warms in color when dimmed (3000K - 2200K).
Meets Title 24 energy efficiency standards
Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - White

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (HC-111)
French (F-004)
Trilingual (English, Spanish, and French) (990P60_91S-HGP)
Trilingual (English, Spanish, and French) (602_6_01801)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Smooth White

5108-34

7 1/4

3 13/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy			1	5

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	601893S-15	1	785652064647	10.75	9.5	9	0.532	3	175	Yes
Master Pack	601893S-15	4	10785652064644	22.75	10	19	2.501	13.4	175	Yes
NJ Pallet		112		48	40	74	82.222	375.2		No
NV Pallet		112		48	40	74	82.222	375.2		No
