601893S-04: Small Pendant LED


Collection:  Leo - Hanging Globe

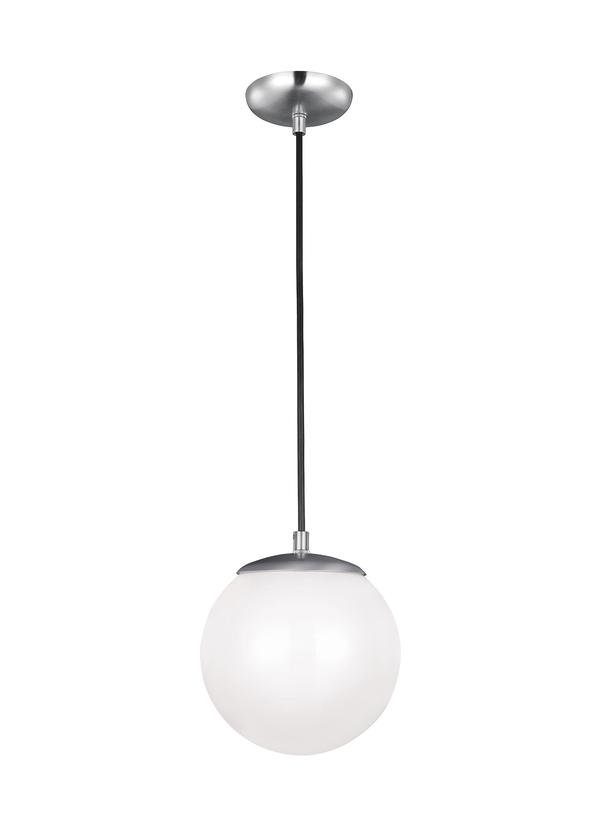

LED Pendant Light Satin Aluminum with Opal Glass.

Versatile Lighting expressions using Pendant Lighting. Decorate with one light fixture finished in Satin Aluminum with Opal Opaque glass. Hangs with sleek black wire for a retro appeal.

UPC #:785652064630

Finish:   Satin Aluminum (04)
Dimensions:

Diameter: 8''
Height: 8 1/2''
Weight: 2.2 lbs.
Overall Height: 56''
Wire: 54'' (color/Black)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 9
Watts Consumed: 9
Watts Rated: 9
Hours Rated: 50000
Lumens: 700
Bulb Temp: 3000 °K
CRI: 90
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Advanced LED technology that warms in color when dimmed (3000K - 2200K).
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Satin Aluminum
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (HC-111)
French (F-004)
Trilingual (English, Spanish, and French) (990P60_91S-HGP)
Trilingual (English, Spanish, and French) (602_6_01801)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Smooth White 1 5108-34     7 1/4 8 3 13/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     1  5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 601893S-04 1  785652064630  10.75 9 9.5 0.532 3 175 Yes
Master Pack   4  10785652064637  22.75 10 19 2.501 13.4 175 Yes
NJ Pallet   112    48 40 74 82.222 375.2 No
NV Pallet   112    48 40 74 82.222 375.2 No
