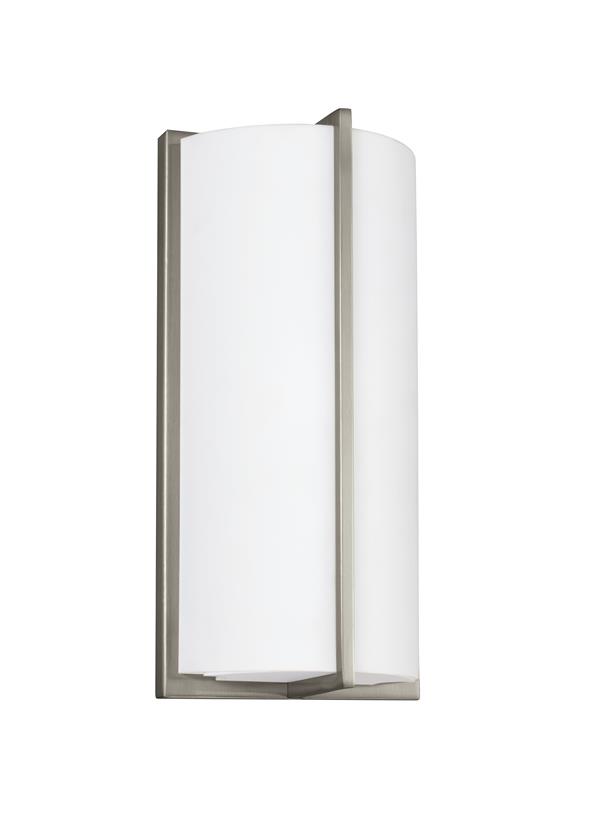

4934093S-962: LED Wall Sconce


Collections: Faron (Primary)
ADA Wall Sconces


Featured in the decorative ADA Wall Sconces collection


Satin white acrylic diffuser

Meets American with Disabilities Act standard extension requirements

Advanced LED technology that warms in color when dimmed (3000K - 2200K).

UPC #:785652064241

Finish:   Brushed Nickel (962)
Dimensions:

Width: 6''
Height: 12 1/2''
Weight: 2.4 lbs.
Extends: 3 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 14
Watts Consumed: 14
Watts Rated: 14
Hours Rated: 50000
Lumens: 1000
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Modules 14w Max. 120v - included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • Advanced LED technology that warms in color when dimmed (3000K - 2200K).
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4934093S)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic Satin White 1     5 3/8 12 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 11  5 1/4  1    6 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4934093S-962 1  785652064241  8.5 6.25 15 0.461 3.4 0 Yes
Master Pack 4934093S-962 4  10785652064248  25.25 9.25 16 2.163 14.6 0 Yes
NJ Pallet   128    48 40 71 78.889 467.2 No
NV Pallet   96    48 40 70 77.778 348 No
