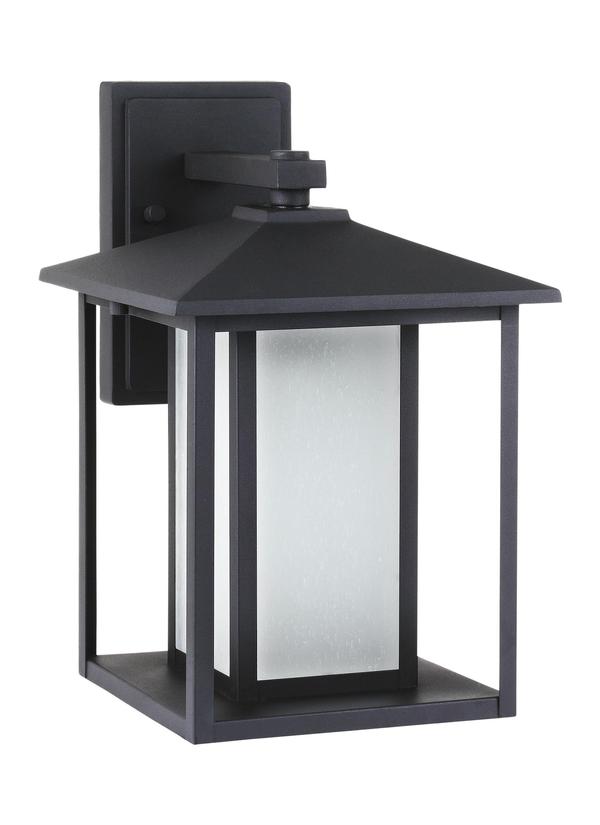

8903197S-12: Large LED Outdoor Wall Lantern


Collection:  Hunnington

Featured in the decorative Hunnington collection

LED

undefined glass panels

Advanced LED technology that warms in color when dimmed (2700K - 2200K).

Meets Title 24 energy efficiency standards

UPC #:785652063336

Finish:   Black (12)
Dimensions:

Width: 9''
Height: 14''
Weight: 5.2 lbs.
Extends: 10 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 14
Watts Consumed: 14
Watts Rated: 14
Hours Rated: 50000
Lumens: 1000
Bulb Temp: 2700 °K
CRI: 90
Features:
  • Advanced LED technology that warms in color when dimmed (2700K - 2200K).
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Undefined
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (8902997S 8903197S)
Trilingual (English, Spanish, and French) (88025 88027 89029 89031)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Undefined 4     4 8 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8  4 3/4  1    3 1/4  10 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8903197S-12 1  785652063336  17.5 18 13.25 2.415 6.1 0 Yes
Master Pack 8903197S-12 0  10785652063333
NJ Pallet   48    48 40 75.25 83.611 292.8 No
NV Pallet   48    48 40 75.25 83.611 292.8 No
