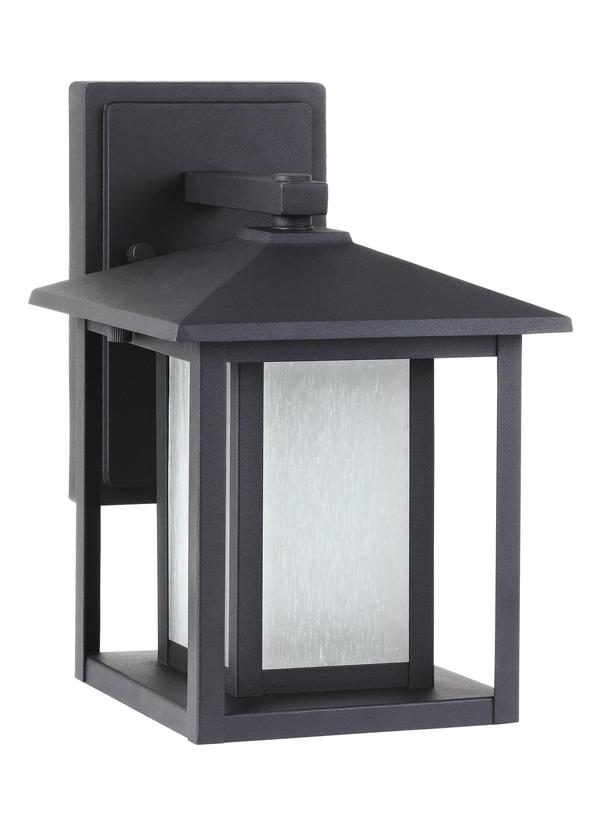

8902997S-12: Small LED Outdoor Wall Lantern


Collection:  Hunnington

Supplied with 6.5-inches of wire

LED is a rapidly-developing lighting technology that cuts energy use by more than 80 percent

Designed for damp and wet environments allowing for direct water contact

5-year manufacturer warranty

Meets Title 24 energy efficiency standards

UPC #:785652063312

Finish:   Black (12)
Dimensions:

Width: 7''
Height: 11''
Weight: 3.4 lbs.
Extends: 8 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 9
Watts Consumed: 9
Watts Rated: 9
Hours Rated: 50000
Lumens: 700
Bulb Temp: 2700 °K
CRI: 90
Features:
  • Advanced LED technology that warms in color when dimmed (2700K - 2200K).
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W890_9_S-HUN)
Trilingual (English, Spanish, and French) (8902997S 8903197S)
Trilingual (English, Spanish, and French) (88025 88027 89029 89031)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Etched Seeded 4     3 1/4 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8  4 3/4  1    3 1/4  7 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8902997S-12 1  785652063312  15 11.25 9.5 0.928 4.1 0 Yes
Master Pack 8902997S-12 0  10785652063319
NJ Pallet   70    48 40 72 80 287 No
NV Pallet   70    48 40 72 80 287 No
