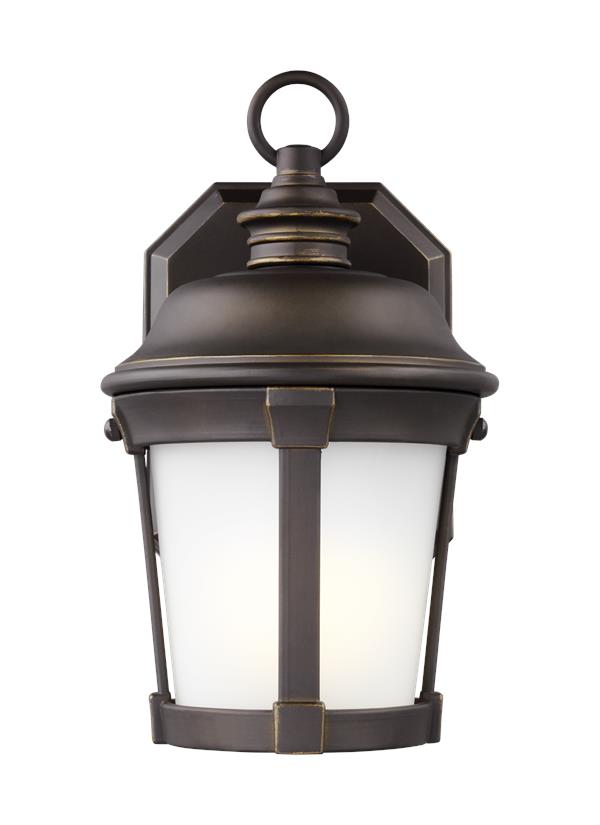

8550701-71: Small One Light Outdoor Wall Lantern


Collection:  Calder

Featured in the decorative Calder collection

1 A19 Medium 75 watt light bulb

Satin Etched glass shade

Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.

Easily converts to LED with optional replacement lamps

UPC #:785652056444

Finish:   Antique Bronze (71)
Dimensions:

Width: 6''
Height: 10''
Weight: 2.6 lbs.
Extends: 7 1/4''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - StoneStrong - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_50701-CLR)
Trilingual (English, Spanish, and French) (8550)
Trilingual (English, Spanish, and French) (8750701 8550701 8650701)
Trilingual (English, Spanish, and French) (8550_)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1 G560299-619     5 4 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7 1/8  5 1/8  1    4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8550701-71 1  785652056444  15 10 9.75 0.846 3.6 0 Yes
Master Pack 8550701-71 0  10785652056441
NJ Pallet   96    48 40 75 83.333 345.6 No
NV Pallet   96    48 40 75 83.333 345.6 No
