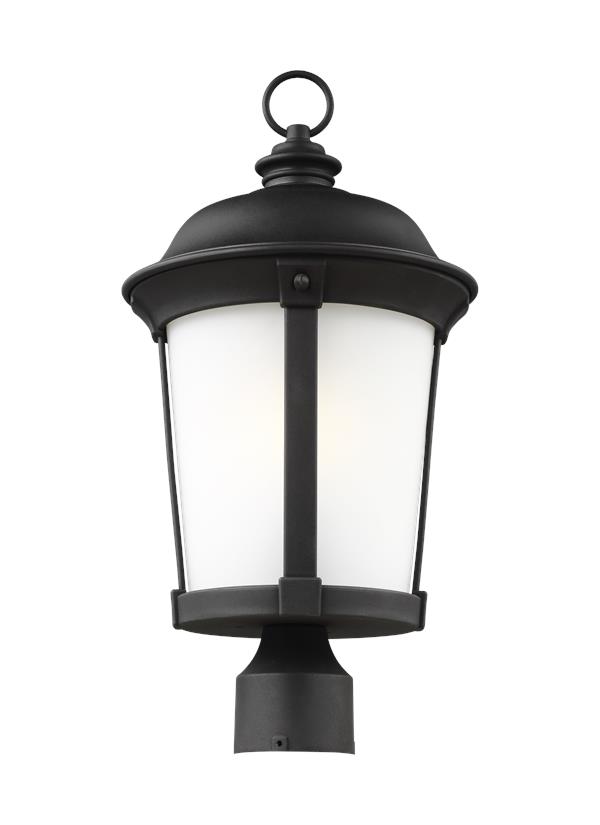

8250701EN3-12: One Light Outdoor Post Lantern

	Collection: Calder
	UPC #:785652056802
	Finish: Black (12)

Dimensions:


Diameter:	10''
Height:	20''

Weight:

4.8 lbs.

Wire:

6'' (color/Black/White)

Mounting Proc.:

Post

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.
ENERGY STAR® Qualified
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - StoneStrong - Black

1 Holder - StoneStrong - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990OP8250701-CLR)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560301-619

8 5/8

7 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Post	3 1/2			3

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8250701EN3-12	1	785652056802	20.5	13.25	13	2.043	7.2	250	Yes
NJ Pallet		35		48	40	70	77.778	252		No
NV Pallet		35		48	40	70	77.778	252		No
