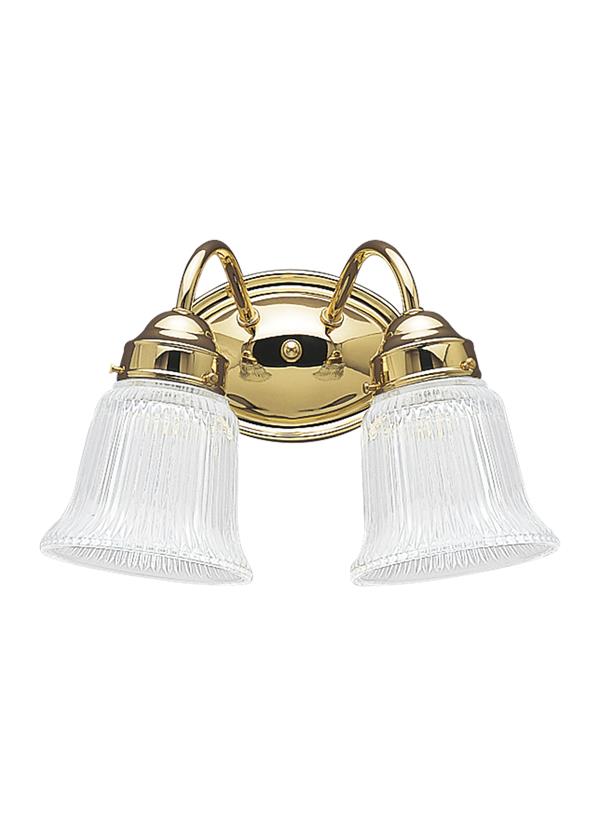

4871EN3-02: Two Light Wall / Bath

	Collection: Brookchester
	Brighten Up the Bath with Two Light Fixture Finished in Polished Brass with Clear Ribbed Tulip Shades.
	Brighten up the bath with two light fixture finished in Polished Brass with Clear Ribbed tulip shades.
	UPC #:785652064159
	Finish: Polished Brass (02)

Dimensions:


Width:	12''
Height:	8 1/4''

Weight:

3.1 lbs.

Extends:

7 1/2''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Bulb Appearance:

Clear

Watts:

Bulbs:

2 - LED Medium A19 9w Max. 120v - included

Features:

ENERGY STAR® Qualified
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Polished Brass

1 Arms - Steel - Polished Brass

Safety Listing:

Safety Listed for Damp Locations
Safety Listed for Damp Locations

Instruction Sheets:

English (HC-226)
French (F-007)
Trilingual (English, Spanish, and French) (HC-226)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear Ribbed

4 1/2

4 5/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	4 1/8	6 1/8	1 1/4			3

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4871EN3-02	1	785652064159	10.75	10.75	7.75	0.518	3.9	125	Yes
NJ Pallet		140		48	40	72	80	546		No
NV Pallet		140		48	40	72	80	546		No
