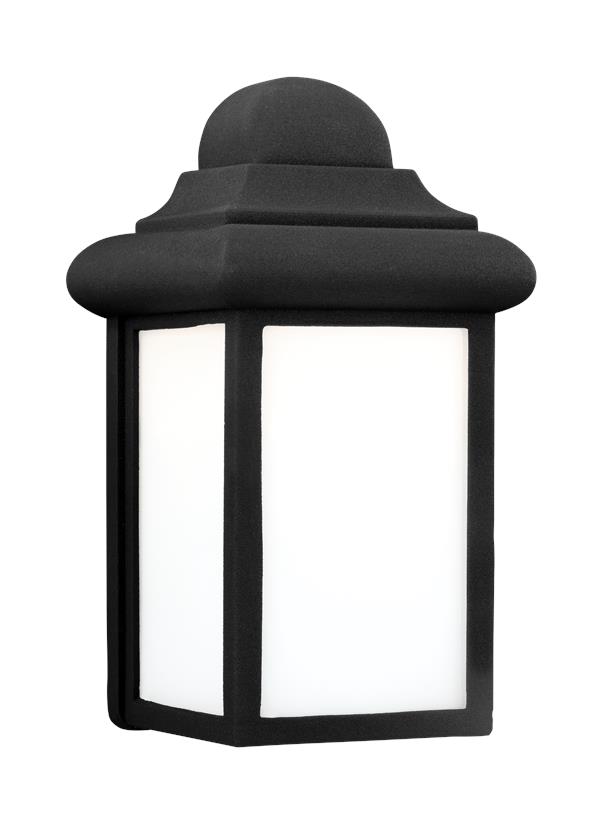

8988EN3-12: One Light Outdoor Wall Lantern


Collection:  Mullberry Hill

One Light LED Outdoor Wall Fixture in Black Finish with White Flat Glass. Decorative Panel Molding.

Featured in the decorative Mullberry Hill collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

smooth white glass panel and smooth white glass panel and smooth white glass panel

ENERGY STAR® Qualified

UPC #:785652053375

Finish:   Black (12)
Dimensions:

Width: 5 3/4''
Height: 8 3/4''
Weight: 1.6 lbs.
Extends: 4 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Die Cast Aluminum - Undefined
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (8588_8788_)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Smooth White 1     3 5
Panel Glass Smooth White 1     3 3/16 5 1/16
Panel Glass Smooth White 1     3 3/16 5 1/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8 3/4  5 3/4  1/2    5  3 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8988EN3-12 1  785652053375  11 6.75 5.5 0.236 1.8 0 Yes
Master Pack   6  10785652053372  18 13.75 11.75 1.683 12.1 0 Yes
NJ Pallet   216    48 40 74 82.222 435.6 No
NV Pallet   240    48 40 74 82.222 484 No
