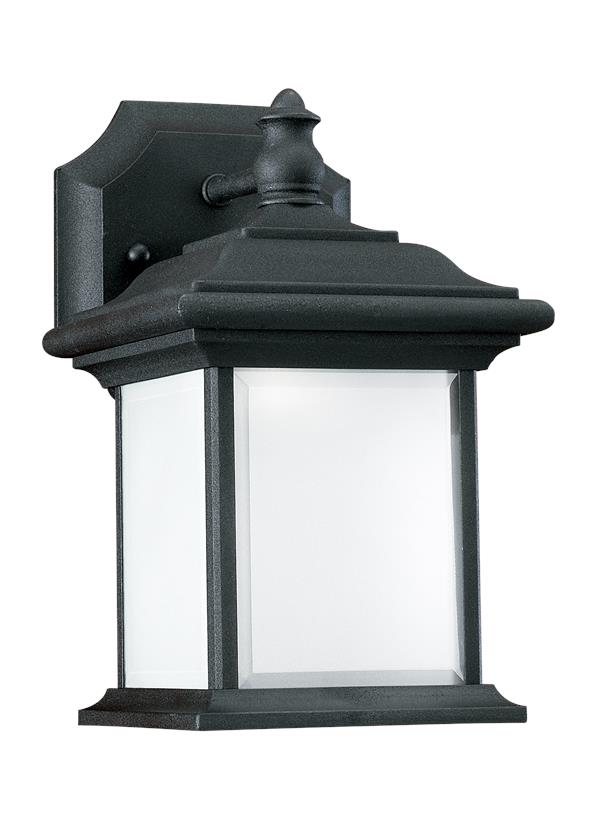

89101EN3-12: Small One Light Outdoor Wall Lantern

	Collection: Wynfield
	One Light LED Wall Lantern in Black Finish
	Outdoor Wall Lantern, Black Finish with Frosted Glass
	Ref. Fix. : 85200-12
	Featured in the decorative Wynfield collection
	1 A19 Medium 9.3 watt light bulb
	Fixture is supplied with 1 light bulb
	frosted glass panels
	ENERGY STAR® Qualified
	UPC #:785652053191
	Finish: Black (12)

Dimensions:


Width:	6''
Height:	9 3/4''

Weight:

2.6 lbs.

Extends:

6 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Die Cast Aluminum - Undefined

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (HC-1383)
French (F-009)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Frosted

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5	5	3/4		2 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	89101EN3-12	1	785652053191	12	8	8.5	0.472	3.2	0	Yes
Master Pack	89101EN3-12	0	10785652053198
NJ Pallet		180		48	40	75	83.333	576		No
NV Pallet		160		48	40	75	83.333	544		No
