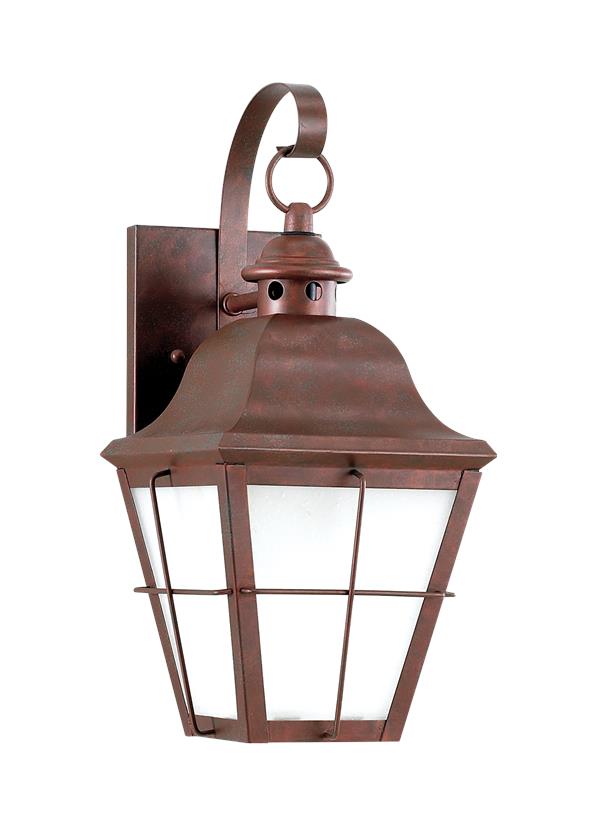

8462DEN3-44: One Light Outdoor Wall Lantern


Collection:  Chatham

Weathered Copper Finished Dark Sky One Light LED Outdoor Wall Lantern with Clear Seeded Glass and Interior Aluminum Panels.

Featured in the decorative Chatham collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

Clear seeded glass panels and white aluminum panels

ENERGY STAR® Qualified

UPC #:785652052934

Finish:   Weathered Copper (44)
Dimensions:

Width: 6 3/4''
Height: 14 1/2''
Weight: 3.2 lbs.
Extends: 7 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Brass - Undefined
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Seeded 4
Panel Aluminum White 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 6  4 3/4  5/8    6  8 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8462DEN3-44 1  785652052934  9.5 9.5 18 0.94 5.75 0 Yes
Master Pack 8462DEN3-44 0  10785652052931
NJ Pallet   70    48 40 72 80 402.5 No
NV Pallet   70    48 40 72 80 402.5 No
