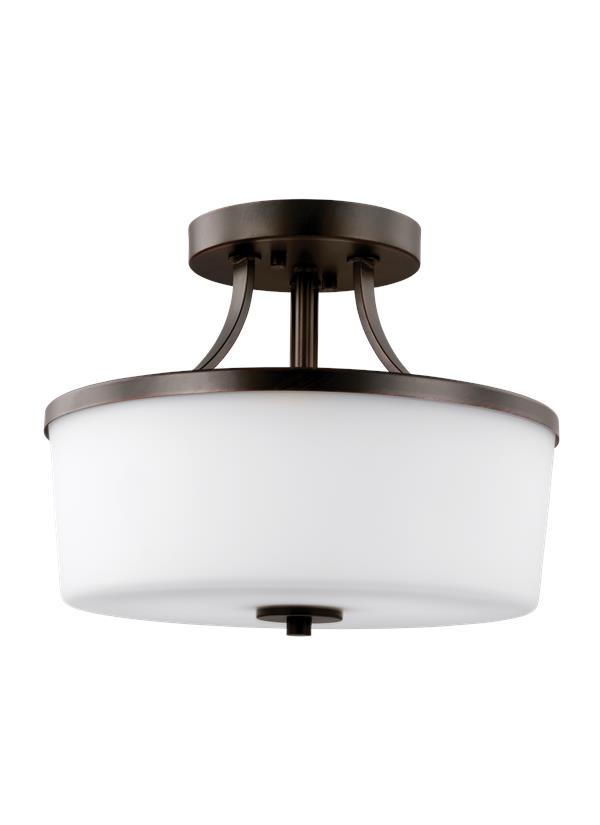

7739102EN3-710: Two Light Semi-Flush Convertible Pendant


Collection:  Hettinger

Featured in the decorative Hettinger collection

2 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Etched / white inside glass shade

Fixture is dual mount and may be installed semi-flush or as a pendant.

UPC #:785652052163

Finish:   Bronze (710)
Dimensions:

Diameter: 13 1/4''
Height: 11 3/8''
Weight: 7.3 lbs.
Height Flush: 10 3/8''
Overall Height: 49''
Wire: 120'' (color/Brown)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Undefined
1 Chain - Steel - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (7739102)
Trilingual (English, Spanish, and French) (990C7739102-HET)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 1     4 3/4 13
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5 1/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7739102EN3-710 1  785652052163  15.5 15.25 11.5 1.573 9.1 0 Yes
Master Pack 7739102EN3-710 0  10785652052160
NJ Pallet   46    48 40 77 85.556 418.6 No
NV Pallet   46    48 40 77 85.556 418.6 No
