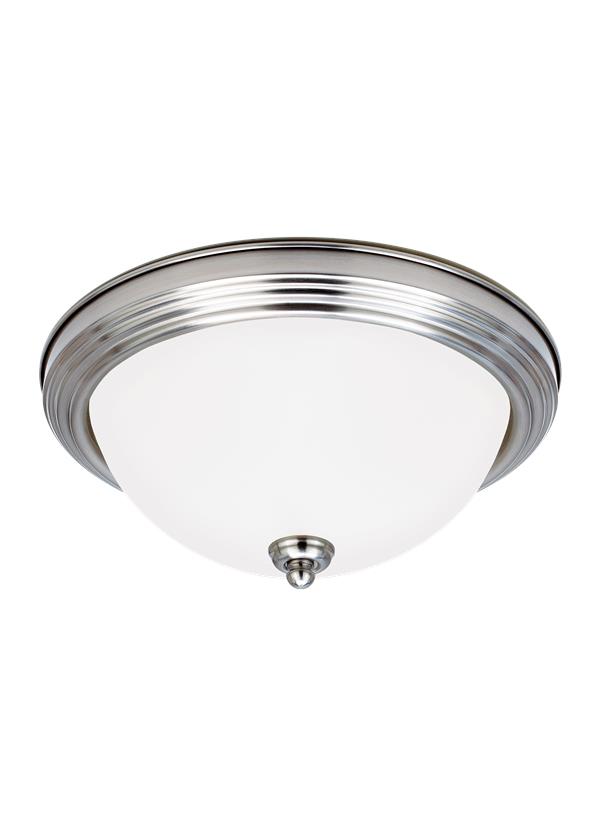

77065EN3-962: Three Light Ceiling Flush Mount



Collection:  Geary


Three Light LED Close to Ceiling Fixture in Brushed Nickel Finish with Satin White Glass Shade

Soft and sophisticated, this ceiling fixture is perfect for any setting. Brushed nickel finish and satin white glass provide simple elegance. ENERGY STAR Qualified.

Featured in the decorative Geary collection

3 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Satin Etched glass diffuser

ENERGY STARĀ® Qualified

UPC #:785652044236

Finish:   Brushed Nickel (962)

Dimensions:

Diameter: 14 1/2''
Height: 6 1/2''
Weight: 4.1 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  3 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (77063 77064 77065 77263 77264 77265)
Trilingual (English, Spanish, and French) (77063 77064 77065 77263 77264 77265)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin Etched 1 G501477-619     4 3/4 11 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 77065EN3-962 785652044236  15.5 15 9.25 1.245 6.05 0 Yes
Master Pack 77065EN3-962 10785652044233
NJ Pallet   66    48 40 70 77.778 429 No
NV Pallet   48    48 40 72 80 346 No
