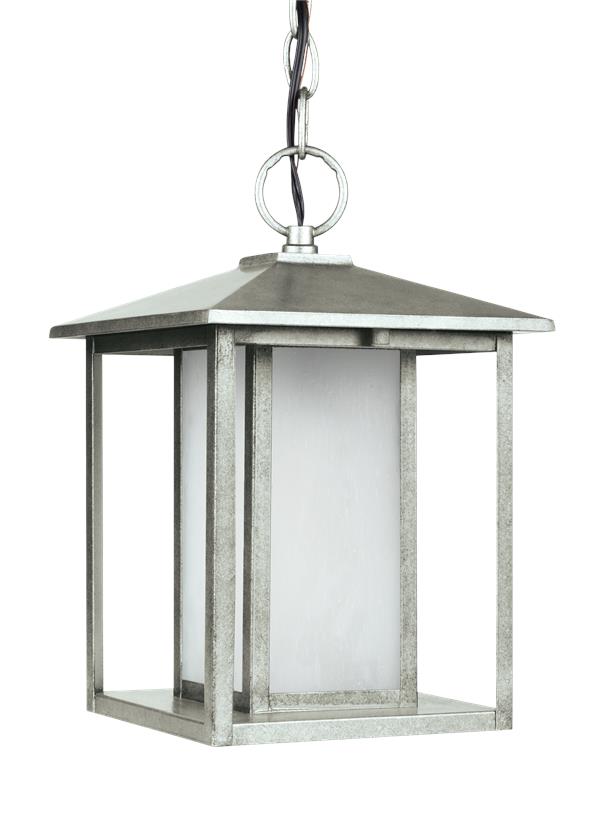

69029EN3-57: One Light Outdoor Pendant



Collection:  Hunnington


UPC #:785652051586

Finish:   Weathered Pewter (57)

Dimensions:

Length: 9"
Width: 9''
Height: 13 3/4''
Weight: 6.3 lbs.
Overall Height: 136 3/4''
Wire: 144'' (color/Black)
Chain: 120''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - LED Medium A19 9.3w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Aluminum - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6_02_-HUN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Etched Seeded 4   4 4 8 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5 1/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97502S Frosted     A19 Medium 9.3 9.3 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 69029EN3-57 785652051586  17.5 12 12 1.458 7 175 Yes
NJ Pallet   48    48 40 75.25 83.611 336 No
NV Pallet   48    48 40 75.25 83.611 336 No
