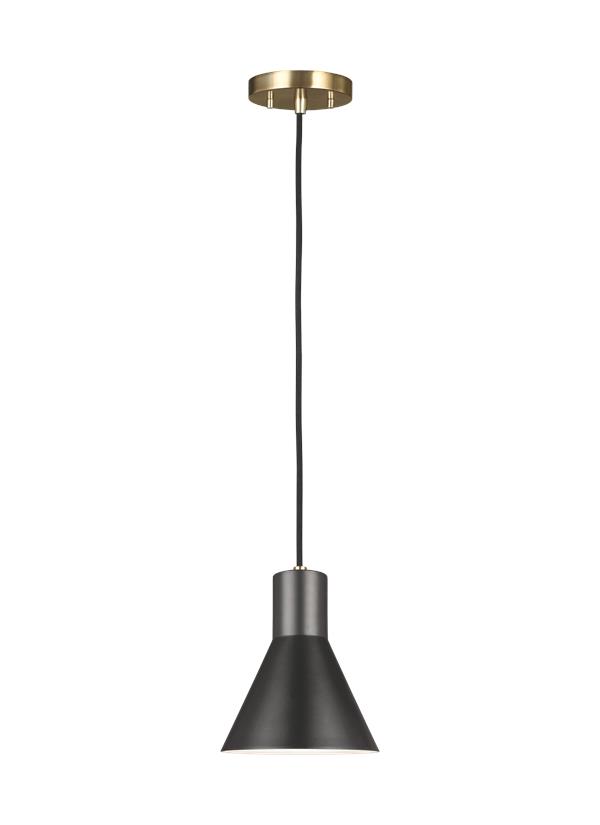

6141301EN3-848: One Light Mini-Pendant



Collection:  Towner


Supplied with adjustable 10-feet of wire for a customized look

An ENERGY STARĀ® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

3-year manufacturer warranty

UPC #:785652047312

Finish:   Satin Brass (848)

Dimensions:

Diameter: 7''
Height: 8 1/2''
Weight: 3.1 lbs.
Overall Height: 123''
Wire: 120'' (color/Black)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6141301-TOW)
Trilingual (English, Spanish, and French) (6141301)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Steel Black 1       8 7
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6141301EN3-848 785652047312  10.75 8.75 8.75 0.476 3.9 0 Yes
Master Pack 6141301EN3-848 10785652047319
NJ Pallet   136    48 40 73 81.111 530.4 No
NV Pallet   136    48 40 73 81.111 455 No
