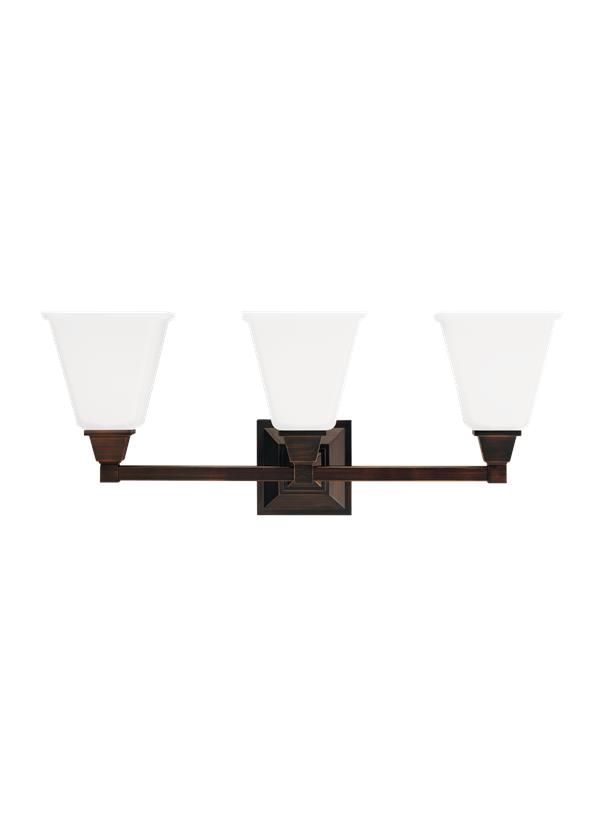

4450403EN3-710: Three Light Wall / Bath


Collection:  Denhelm

UPC #:785652045257

Finish:   Bronze (710)
Dimensions:

Width: 24 1/4''
Height: 10''
Weight: 7.8 lbs.
Extends: 7 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulbs:
  3 - LED Medium A19 9w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel / Zinc - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4_5040_-DEN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Glass Glass Etched / White Inside 3   5 3/4 5 3/4 5 1/2   2 1/4 5 3/4 5 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4  4 3/4  2 1/4    7 1/2  2 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4450403BLE-710 1  785652045257  24.5 10.5 9.25 1.377 10.4 125 Yes
