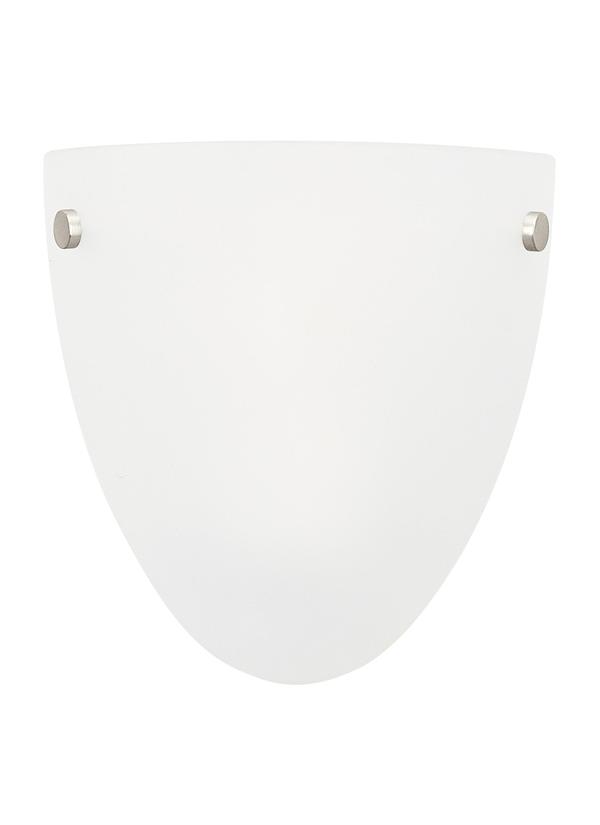

41036EN3-999: One Light Wall / Bath Sconce

	Collection: Metropolis
	One Light ADA LED Wall Sconce
	Thumb screws to be included in -782 and -962 finishes
	Featured in the decorative Metropolis collection
	1 A19 Medium 9.3 watt light bulb
	Fixture is supplied with 1 light bulb
	Satin Etched glass diffuser
	Meets American with Disabilities Act standard extension requirements
	UPC #:785652048708
	Finish: Multiple Finishes (999)

Dimensions:


Width:	8''
Height:	8 1/4''

Weight:

1.83 lbs.

Extends:

4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

Meets American with Disabilities Act standard extension requirements
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Undefined

Safety Listing:

Safety Listed for Damp Locations
Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (41036is)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Glass

Satin Etched

8 1/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5	4 1/2			3 1/4	5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	41036EN3-999	1	785652048708	12	10.5	5.5	0.401	2.6	0	Yes
Master Pack		2	10785652048705	12.75	12	11	0.974	6.2	0	Yes
NJ Pallet		168		48	40	77	85.556	520.8		No
NV Pallet		168		48	40	68	75.556	462		No
