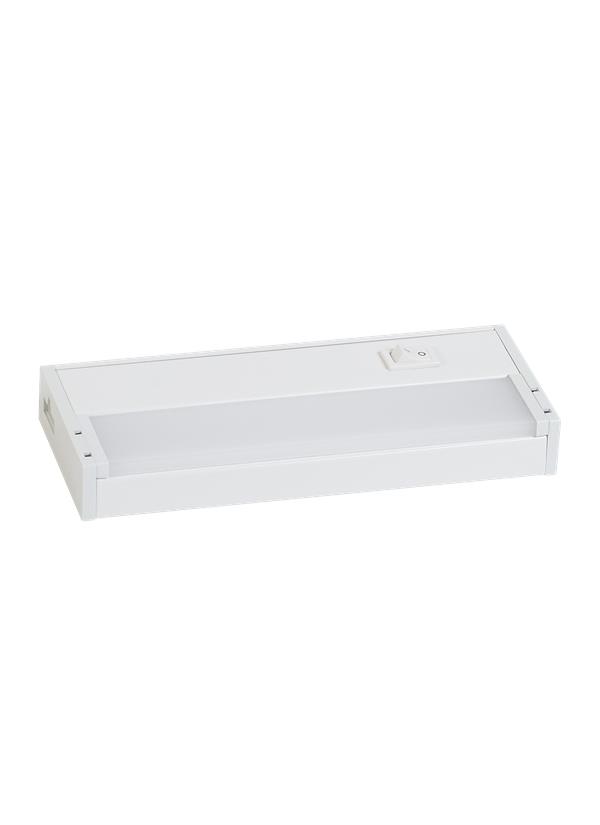

49274S-15: Vivid LED Undercabinet 7-1/2 in 2700K White



Collection:  Vivid LED Undercabinet


UPC #:785652040542

Finish:   White (15)

Dimensions:

Length: 7 1/2"
Width: 3 1/8''
Height: 1''
Weight: 0.4 lbs.
Connection: Plug Into Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 6.4
Watts Consumed: 6.4
Watts Rated: 6.4
Hours Rated: 50000
Lumens: 343
Bulb Temp: 2700 °K
CRI: 90
Features:
  • ENERGY STAR® Qualified
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Housing - Steel - White
Safety Listing:
  Safety Listed for Damp Locations

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 49274S-15 785652040542  9 3.5 1.5 0.027 0.8 65 Yes
Master Pack 49274S-15 10785652040549  10 9.5 4 0.22 5.2 65 Yes
