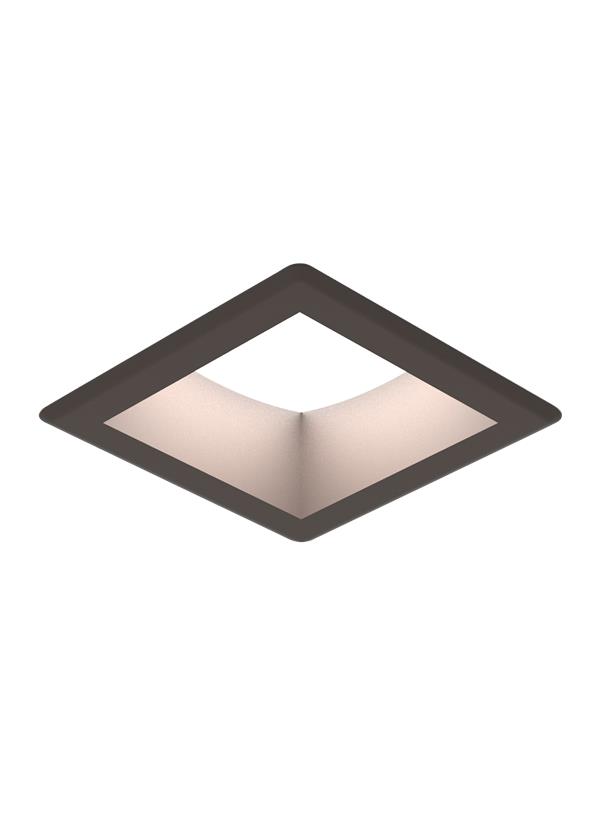

14301S-171: 6in Traverse Unlimited Square 3000K 90CRI Painted Antique Bronze


Collection:  Traverse LED Unlimited

UPC #:785652040177

Finish:   Painted Antique Bronze (171)
Dimensions:

Length: 5 7/8"
Width: 5 7/8''
Height: 4 7/8''
Wire: 6 1/2'' (color/Black/White)
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 14
Watts Consumed: 14
Watts Rated: 14
Hours Rated: 50000
Lumens: 750
Bulb Temp: 3000 °K
CRI: 90
Features:
  • Designed to meet airtight requirements for 2.0 CFM or less air leakage
  • This fixture is classified as a directional light source
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
  • Fixture is registered under California Energy Commision
  • Listed for use with direct contact to insulation
Material List:
1 Housing - Aluminum - White
1 Trim - Aluminum - Painted Antique Bronze
1 Lens - Polycarbonate - Frosted
Safety Listing:
  Safety Listed for Wet Locations / IC
Instruction Sheets:
Trilingual (English, Spanish, and French) (990TRAVU)

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 14301S-171 1  785652040177  6.25 6.25 6 0.136 1.2 100 Yes
Master Pack 14301S-171 12  10785652040174  19 13 12.25 1.751 15.5 100 Yes
NJ Pallet   504    48 40 72 80 651 No
NV Pallet   504    48 40 72 80 651 No
