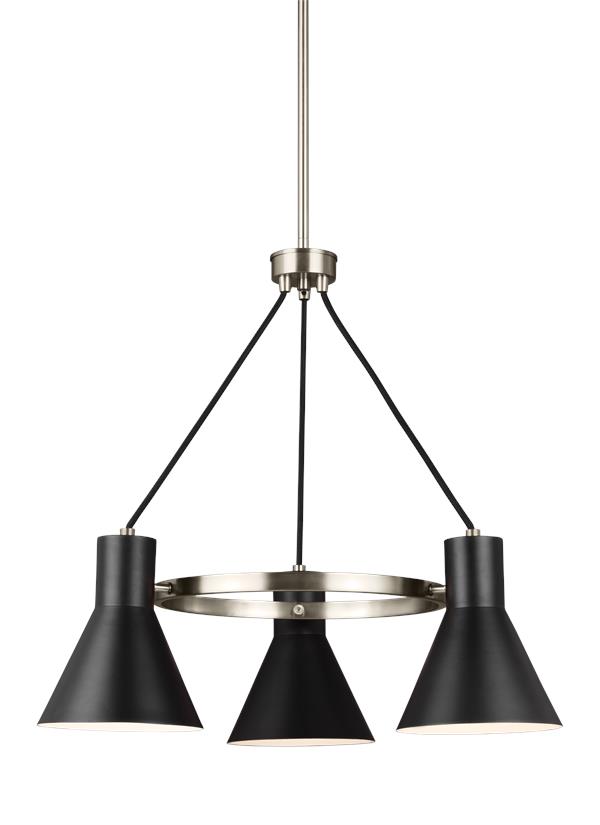

3141303EN-962: Three Light Chandelier

	Collection: Towner
	UPC #:785652025532
	Finish: Black (12)

Dimensions:


Diameter:	24''
Height:	22''

Weight:

7.3 lbs.

Overall Height:

67 1/4''

Wire:

120'' (color/Clear Silver)

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Bulbs:

3 - LED Medium A19 10w Max. 120v - included

Features:

ENERGY STAR® Qualified
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Sloped ceiling mounting hardware included
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Brushed Nickel

1 Ring - Steel - Brushed Nickel

1 6" Stem - Steel - Brushed Nickel

3 12" Stem - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990CH314130_-TOW)
Trilingual (English, Spanish, and French) (5141303 5141305)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Steel

Black

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3/4			4 3/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
10A19DLED27JA8	Frosted		A19	Medium	10	10	120v	25000	800	2700	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	3141303EN-962	1	785652025532	18.25	17	10.75	1.93	9.1	175	Yes
NJ Pallet		36		48	40	71	78.889	327.6		No
NV Pallet		36		48	40	71	78.889	327.6		No
