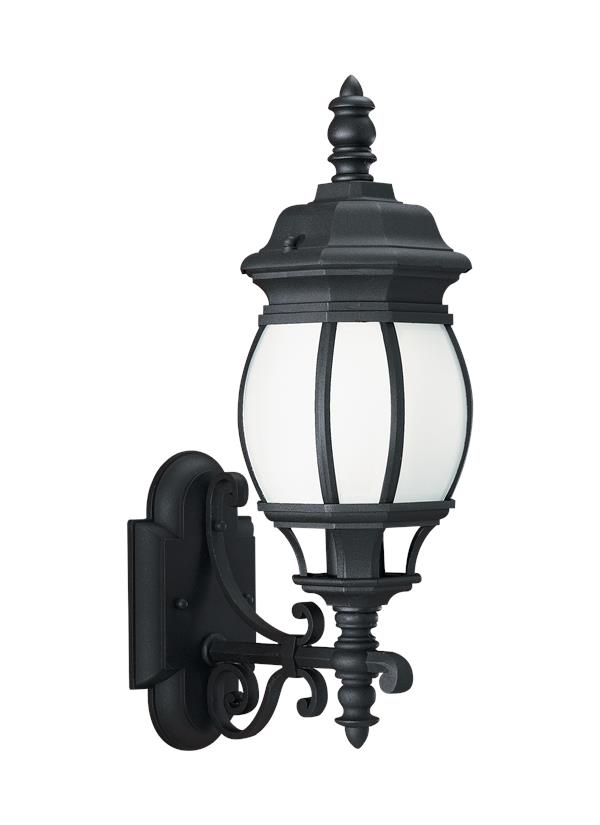

89102-12: Medium One Light Outdoor Wall Lantern

	Collection: Wynfield
	One Light Wall Lantern in Black Finish
	Black Cast Aluminum Single Light Outdoor Wall Lantern with Frosted Glass
	Ref. fix.: 88200-12
	Featured in the decorative Wynfield collection
	1 A19 Medium 100 watt light bulb
	frosted glass panels and frosted glass panels
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652025006
	Finish: Black (12)

Dimensions:


Width:	6 1/4''
Height:	19 3/4''

Weight:

4.3 lbs.

Extends:

10''

Wire:

6 1/2''

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Die Cast Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (HC-949)
French (F-009)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Frosted

Panel

Glass

Frosted

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	9	5	1		15 1/4

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	89102-12	1	785652025006	17.5	12.25	8.25	1.023	5.4	0	Yes
Master Pack	89102-12	0	10785652025003
NJ Pallet		72		48	40	72	80	388.8		No
NV Pallet		72		48	40	80	88.889	392.4		No
