Job Name:   Job Type:
Comments:   Quantity:
  Product Number: 5233-746

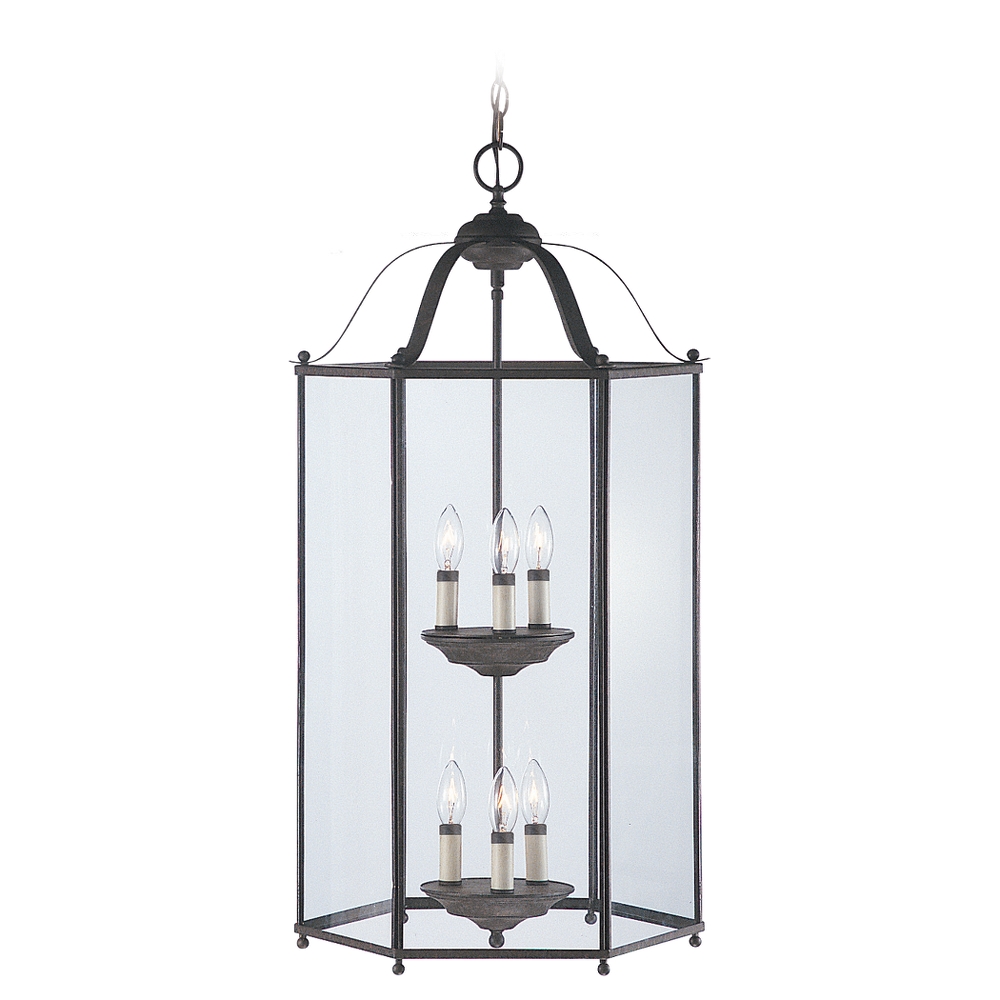

  5233-746 - Six-Light Hall Foyer
  Collection:  Bretton
  Oxford Bronze Trimmed Foyer Pendant with Six Lights Displayed on Two Tiers. Long Clear Glass Panels all Around Reveal Radiance.
  Oxford Bronze trimmed foyer Pendant with six lights displayed on two tiers. Long clear glass panels all around reveal radiance.
  Use 9100-746 for Replacement Chain (9-18-03).

  UPC #:  785652523366   Product Type:   Pendant
  Finish:   Oxford Bronze (746)
  Features:
Clear Bulb Recommended

  Dimensions:
Diameter: 16 1/2''
Height: 29 3/8''
Height w/ Tail: 120''
Wire: 144'' (color/Brown)
Chain: 88''
Switch Type: N/A
Mounting Proc.: Center Lock-Up
Outlet Box: Mounted To Box

  Bulbs:
  6 - Candelabra A - Line 60w max 120v - Not included

  Material List:
1 Body - Steel - Oxford Bronze
1 Chain - Steel - Oxford Bronze

  Saftey Listing:
  cUL Listed for Dry Locations
UL Listed for Dry Locations

  Instruction Sheets
French (F-004)
English (HC-192)

  Shade / Diffuser
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear 1


  Shipping Information
Package Type Quantity UPC Length Width Height Cube Weight UPS Ship Label
Individual 1  785652523366  18.5 16.5 27.25 4.814 24.75 Yes A IP-1
NJ Pallet 15    48 40 76 84.444 371.25 No
NV Pallet 15    48 40 76 84.444 371.25 No
