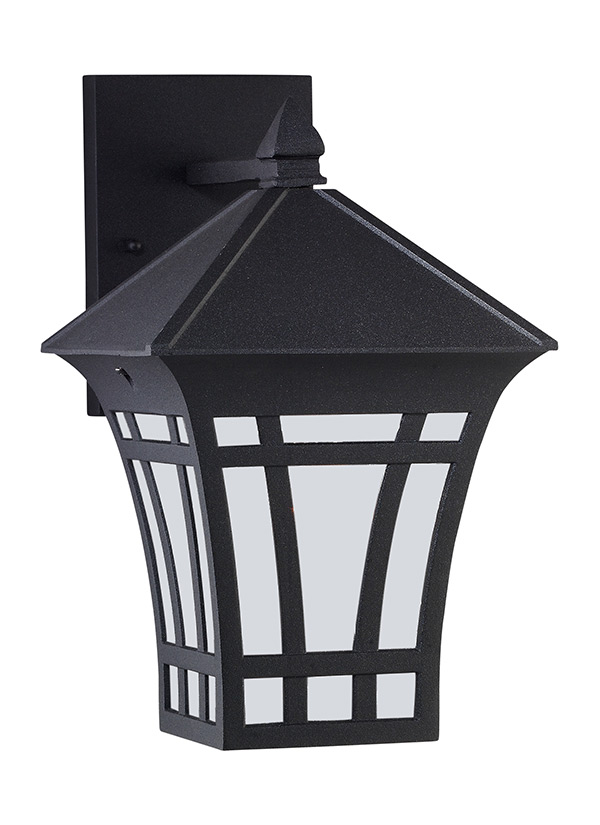

89132-12: One Light Outdoor Wall Lantern

	Collection: Herrington
	One Light Outdoor Wall Lantern in Black Finish with Etched Glass, White Inside.
	Featured in the decorative Herrington collection
	1 A19 Medium 100 watt light bulb
	Etched / white inside glass panels
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652025143
	Finish: Black (12)

Dimensions:


Width:	7 1/4''
Height:	11 3/4''

Weight:

3.4 lbs.

Extends:

9 1/2''

Wire:

6 1/2''

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (HC-1598)
French (F-010)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Etched / White Inside

3 3/16

5 5/32

6 1/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	6 5/16	4 1/4	13/16		3 1/4	8 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	89132-12	1	785652025143	14.5	11.25	9.5	0.897	4.2	0	Yes
Master Pack	89132-12	0	10785652025140
NJ Pallet		84		48	40	71.5	79.444	352.8		No
NV Pallet		80		48	40	71	78.889	336		No

	Job Name:	Job Type:
	Comments:	Quantity:
