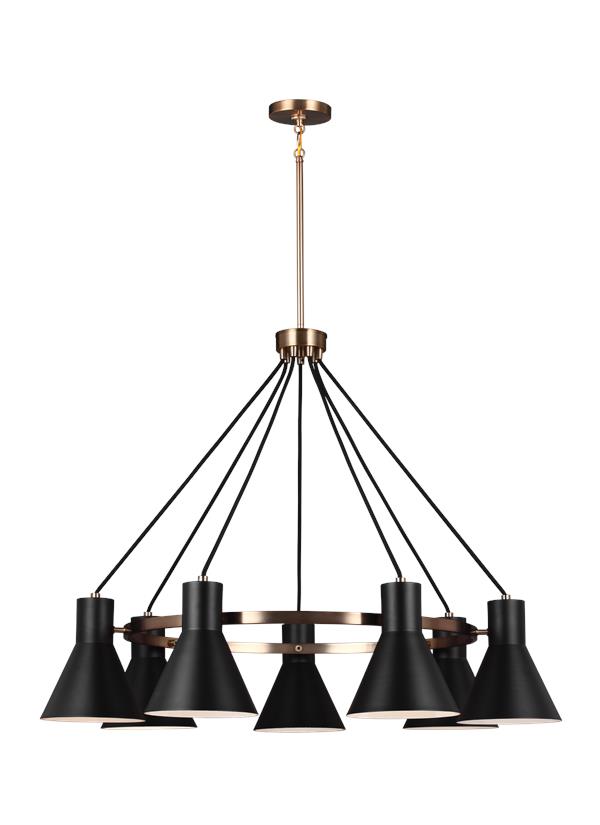

3141307EN-848: Seven Light Chandelier


Collection:  Towner

UPC #:785652025563

Finish:   Black (12)
Dimensions:

Diameter: 35''
Height: 27 3/4''
Weight: 14.6 lbs.
Overall Height: 74''
Wire: 120'' (color/Gold)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  7 - LED Medium A19 10w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Brass
1 Ring - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH314130_-TOW)
Trilingual (English, Spanish, and French) (3141305 3141307)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Black 7       8 7
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
10A19DLED27JA8 Frosted     A19 Medium 10 10 120v 25000 800   2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3141307EN-848 1  785652025563  26.75 26 11 4.427 18.2 175 Yes
NJ Pallet   14    48 40 68.5 76.111 254.8 No
NV Pallet   14    48 40 68.5 76.111 254.8 No
