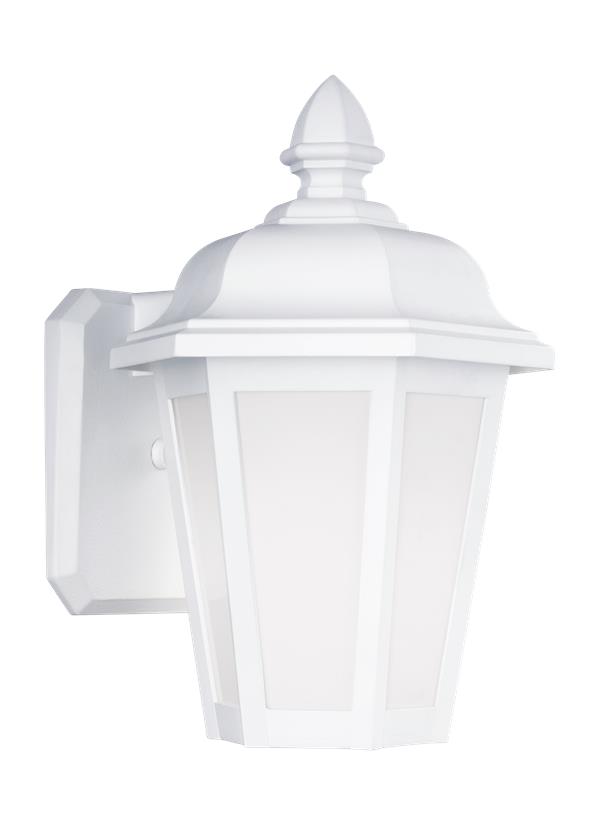

89822EN-15: Small One Light Outdoor Wall Lantern

	Collection: Brentwood
	White Powdercoat Cast Aluminum One Light LED Outdoor Wall Lantern with White Glass. Long Molded Panels.
	Rugged but decorative cast aluminum. Outdoor wall lantern made with durable black powdercoat finish over cast aluminum and Clear Glass.
	UPC #:785652024436
	Finish: White (15)

Dimensions:


Width:	7''
Height:	10 1/4''

Weight:

2.5 lbs.

Extends:

7''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Bulb Appearance:

Clear

Bulbs:

1 - LED Medium A19 10w Max. 120v - included

Features:

ENERGY STAR® Qualified
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Powder coat added to the finish to protect against aging.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Canopy - Die Cast Aluminum - White

1 Cap - Die Cast Aluminum - White

1 Body - Die Cast Aluminum - White

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990W8822BLE-BRE)
Trilingual (English, Spanish, and French) (990W8_22-BRE)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Smooth White

2 3/16

5 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5 3/16	4 3/8	3/8		6	4 1/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
10A19DLED27JA8	Frosted		A19	Medium	10	10	120v	25000	800	2700	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	89822EN-15	1	785652024436	12	10	9	0.625	2.8	175	Yes
Master Pack	89822EN-15	3	10785652024433	27.25	13	10.25	2.101	9.8	175	Yes
NJ Pallet		90		48	40	69	76.667	294		No
NV Pallet		90		48	40	69	76.667	294		No

	Job Name:	Job Type:
	Comments:	Quantity:
