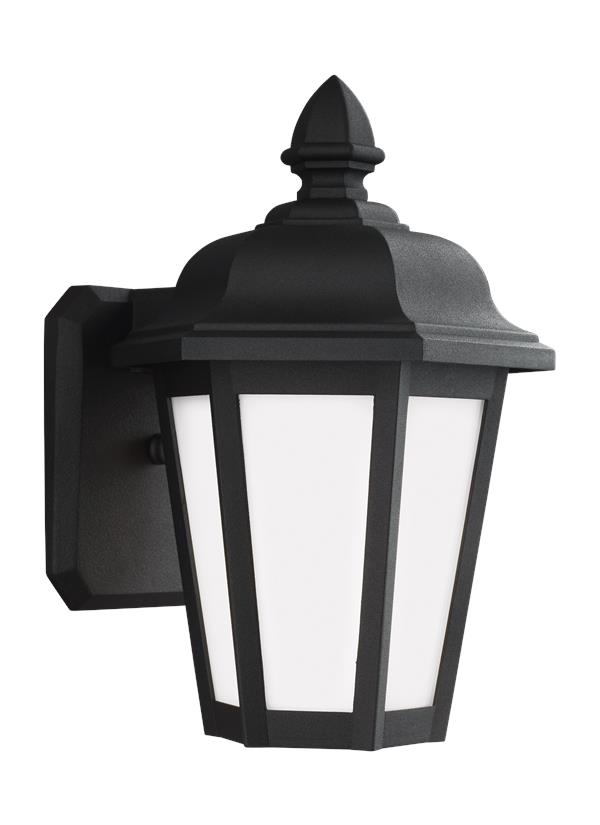

89822EN-12: Small One Light Outdoor Wall Lantern


Collection:  Brentwood

Black Powdercoat Cast Aluminum One Light LED Outdoor Wall Lantern with White Glass. Long Molded Panels.

Rugged but decorative cast aluminum. Outdoor wall lantern made with durable black powdercoat finish over cast aluminum and White Glass.

UPC #:785652024429

Finish:   Black (12)
Dimensions:

Width: 7''
Height: 10 1/4''
Weight: 2.5 lbs.
Extends: 7''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - LED Medium A19 10w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Canopy - Die Cast Aluminum - Black
1 Cap - Die Cast Aluminum - Black
1 Body - Die Cast Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8822-BRE)
Trilingual (English, Spanish, and French) (990W8_22-BRE)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Smooth White 6     2 3/16 5 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 3/16  4 3/8  3/8    6  4 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
10A19DLED27JA8 Frosted     A19 Medium 10 10 120v 25000 800   2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 89822EN-12 1  785652024429  12 10 9 0.625 2.8 175 Yes
Master Pack 89822EN-12 3  10785652024426  27.25 13 10.25 2.101 9.8 175 Yes
NJ Pallet   90    48 40 10.25 11.389 294 No
NV Pallet   90    48 40 10.25 11.389 294 No
