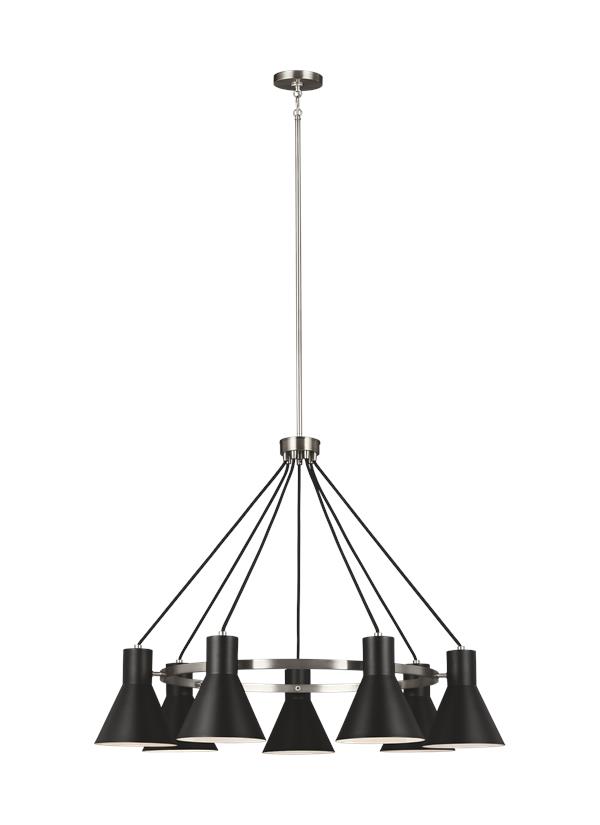

3141307-962: Seven Light Chandelier



Collection:  Towner


Featured in the decorative Towner collection

7 A19 Medium 60 watt light bulbs

black steel shades

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652002380

Finish:   Brushed Nickel (962)

Dimensions:

Diameter: 35''
Height: 27 3/4''
Weight: 14.6 lbs.
Overall Height: 74''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  7 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
1 Ring - Steel - Brushed Nickel
1 6" Stem - Steel - Brushed Nickel
3 12" Stem - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH314130_-TOW)
Trilingual (English, Spanish, and French) (3141305 3141307)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Steel Black 7       8 7
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3141307-962 1  785652002380  26.75 26 11 4.427 18.2 0 Yes
Master Pack 3141307-962 0  10785652002387
NJ Pallet   14    48 40 68.5 76.111 254.8 No
NV Pallet   14    48 40 68.5 76.111 254.8 No
