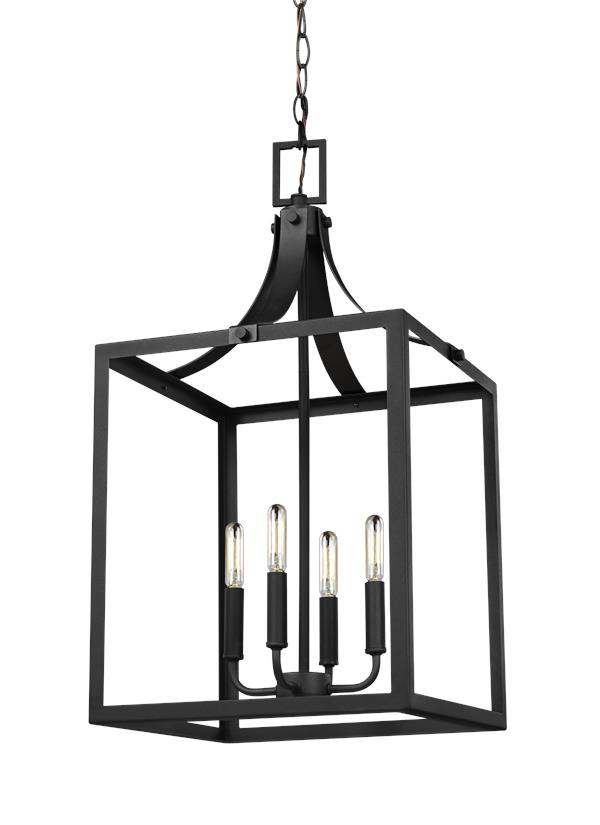

5340604-12: Large Four Light Hall / Foyer


Collection:  Labette

Supplied with pre-laced, adjustable 10-feet of wire 6-feet of chain for a customized look

Mounting hardware included for use on flat, slope, vaulted or cathedral ceilings

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652002298

Finish:   Black (12)
Dimensions:

Length: 14"
Width: 14''
Height: 27 1/4''
Weight: 8.3 lbs.
Overall Height: 101 3/4''
Wire: 120'' (color/Black)
Chain: 72''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  4 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Black
1 Chain - Steel - Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (5240603 5340604)
Trilingual (English, Spanish, and French) (990P5_4060_-LAB)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5340604-12 1  785652002298  19.5 16.25 16.25 2.98 10.7 0 Yes
Master Pack 5340604-12 0  10785652002295
NJ Pallet   24    48 40 69.5 77.222 256.8 No
NV Pallet   24    48 40 69.5 77.222 256.8 No
