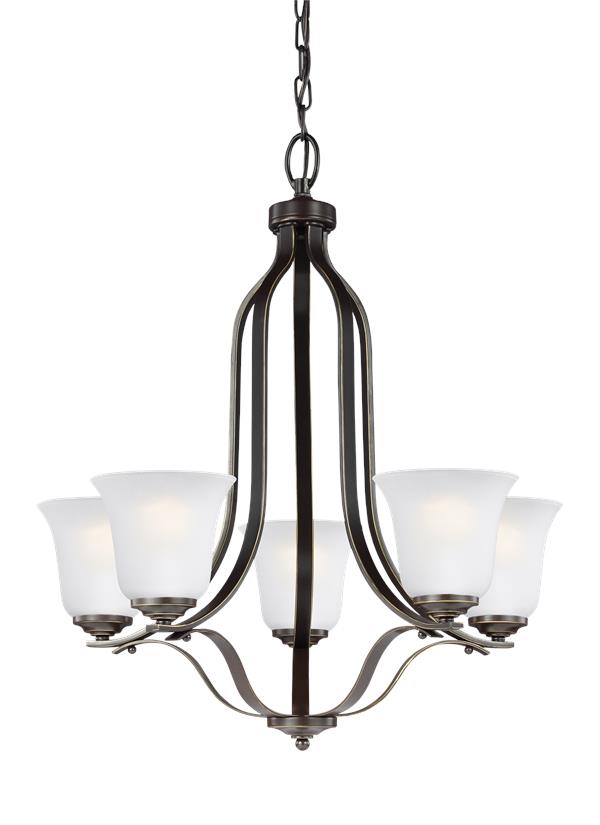

3139005-782: Five Light Chandelier


Collection:  Emmons

Featured in the decorative Emmons collection

5 A19 Medium 100 watt light bulbs

Satin Etched glass shades

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652002755

Finish:   Heirloom Bronze (782)
Dimensions:

Diameter: 23 7/8''
Height: 26 3/4''
Weight: 9.5 lbs.
Overall Height: 98 3/4''
Wire: 120'' (color/Brown)
Chain: 72''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  5 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Heirloom Bronze
1 Chain - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH313900_-EMM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 5 G560267-619     5 1/8 5 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/4      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3139005-782 1  785652002755  23.5 23.5 13.5 4.314 14.6 250 Yes
NJ Pallet   18    48 40 74 82.222 262.8 No
NV Pallet   18    48 40 74 82.222 262.8 No
