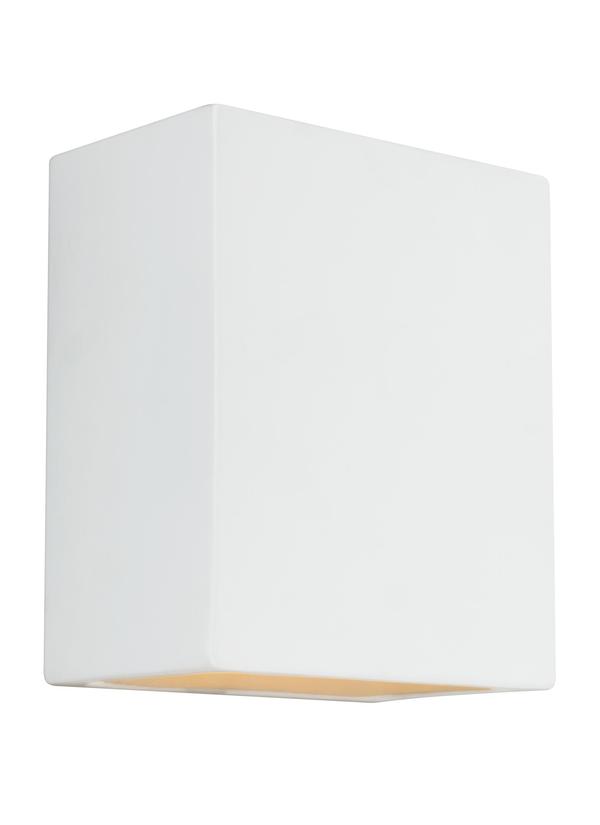

8304801-714: One Light Outdoor Wall Lantern



Collection:  Paintable Ceramic Sconces


Outdoor Wall Bracket in Tough Ceramic Material. Accomodates One Light.

Acrylic or Latex paint suggested

Featured in the decorative Paintable Ceramic Sconces collection

1 A19 Medium 75 watt light bulb

undefined ceramic diffuser

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

Easily converts to LED with optional replacement lamps

UPC #:785652002472

Finish:   Unfinished Ceramic (714)

Dimensions:

Width: 8''
Height: 10''
Weight: 3.6 lbs.
Extends: 5 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Ceramic - Unfinished Ceramic
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (990W8304_01-PCS)
Trilingual (English, Spanish, and French) (9208304801-714 + 8304701EN3-714)
Trilingual (English, Spanish, and French) (9208304801-714-8304701EN3-714)
Trilingual (English, Spanish, and French) (8304801-714_8304701EN3-714)
Trilingual (English, Spanish, and French) (8304801-714 8304701EN3-714)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Ceramic Unfinished Ceramic 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 10  7/8    4 1/4  5 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8304801-714 785652002472  11 8.25 15.5 0.814 4.6 0 Yes
Master Pack 8304801-714 10785652002479
NJ Pallet   135    48 40 71.5 79.444 621 No
NV Pallet   135    48 40 71.5 79.444 621 No
