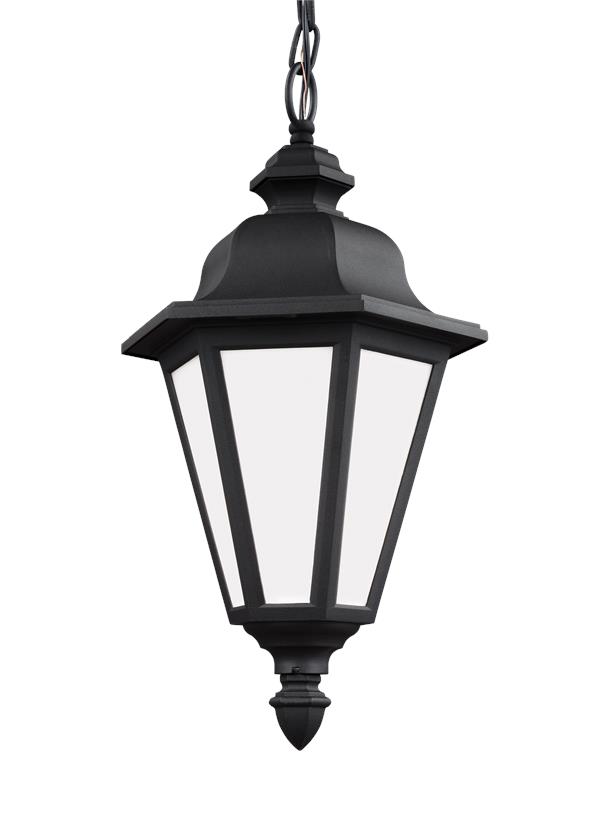

69025EN-12: One Light Outdoor Pendant


Collection:  Brentwood

Rugged But Decorative Cast Aluminum for Outdoor Decor. LED Pendant Fixture Made with Durable Black Powdercoat Finish Cast Aluminum and White Glass. U.L. Listed for Damp Location.

UPC #:785652018091

Finish:   Black (12)
Dimensions:

Diameter: 10 1/4''
Height: 18 3/4''
Weight: 5.2 lbs.
Overall Height: 56 1/2''
Wire: 120'' (color/Black)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - LED Medium A19 10w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Powder coat added to the finish to protect against aging.
Material List:
1 Cap - Die Cast Aluminum - Black
1 Body - Die Cast Aluminum - Black
1 Chain - Steel - Black
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6025-BRE)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Smooth White 6     3 5/8 7 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 3/16      5 3/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
E10A19DLED27JA8 Frosted     A19 Medium 10 10 120v 25000 800   2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 69025EN-12 1  785652018091  16.5 12 10.25 1.174 5.7 175 Yes
NJ Pallet   70    48 40 76 84.444 399 No
NV Pallet   70    48 40 76 84.444 399 No
