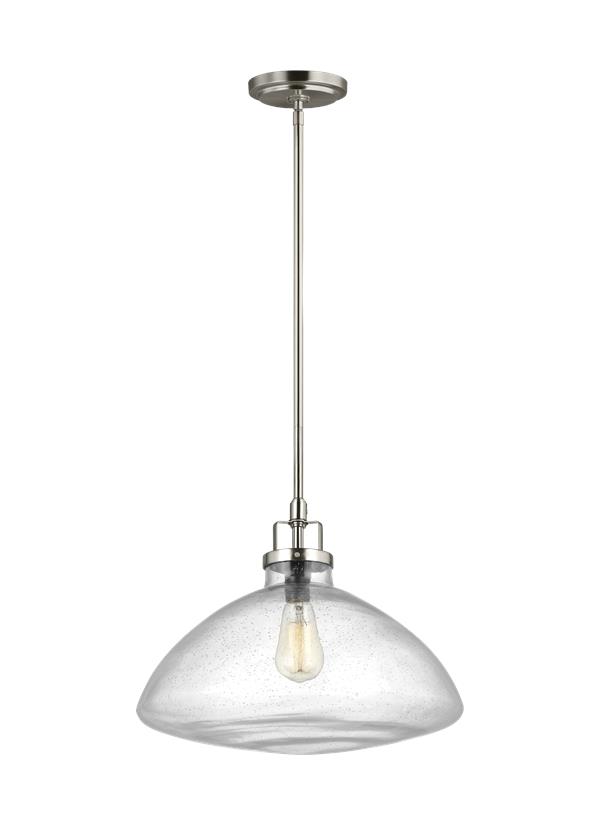

6614501-962: One Light Pendant



Collection:  Belton


UPC #:785652003479

Finish:   Brushed Nickel (962)

Dimensions:

Diameter: 16''
Height: 12 3/4''
Weight: 6.4 lbs.
Overall Height: 57 1/4''
Wire: 72'' (color/Clear Silver)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Vintage lamp(s) recommended for aesthetics
Material List:
1 Body - Steel - Brushed Nickel
1 6" Stem - Steel - Brushed Nickel
3 12" Stem - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6614504-BEL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear Seeded 1 G560217-67     8 3/8 12 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6614501-782 785652003479  19 13.5 19.5 2.895 9.6 250 Yes
NJ Pallet   22    48 40 76.75 85.278 211.2 No
NV Pallet   22    48 40 76.75 85.278 211.2 No
