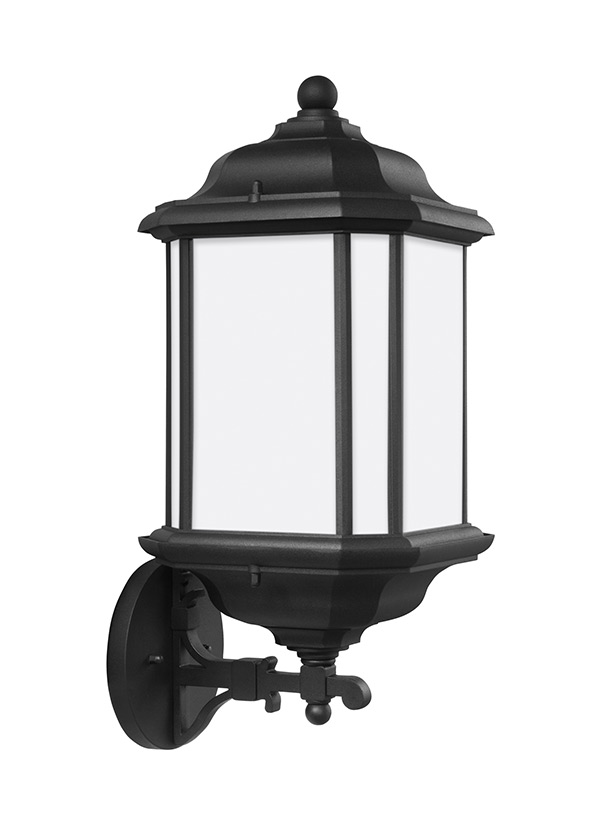

84532-12: One Light Outdoor Wall Lantern


Collection:  Kent

Outdoor wall lantern finished black over die-cast aluminum with satin etched glass.

One Light Outdoor Wall Lantern in Black Finish with Satin Etched Glass

Design #: D20034

Featured in the decorative Kent collection

1 A19 Medium 100 watt light bulb

Satin Etched glass panels and Satin Etched glass panels

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652117503

Finish:   Black (12)
Dimensions:

Width: 8 1/2''
Height: 19 1/4''
Weight: 5.1 lbs.
Extends: 9 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-407)
French (F-009)
Trilingual (English, Spanish, and French) (990W84030-84530-84032-84532-KEN)
Trilingual (English, Spanish, and French) (84031 84531 84532)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Satin Etched 4
Panel Glass Satin Etched 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     5/8  5 1/2  16 1/2  2 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 84532-12 1  785652117503  21.5 11.5 10 1.431 6.3 0 Yes
Master Pack 84532-12 0  10785652117500
NJ Pallet   56    48 40 74 82.222 352.8 No
NV Pallet   56    48 40 74 82.222 352.8 No
