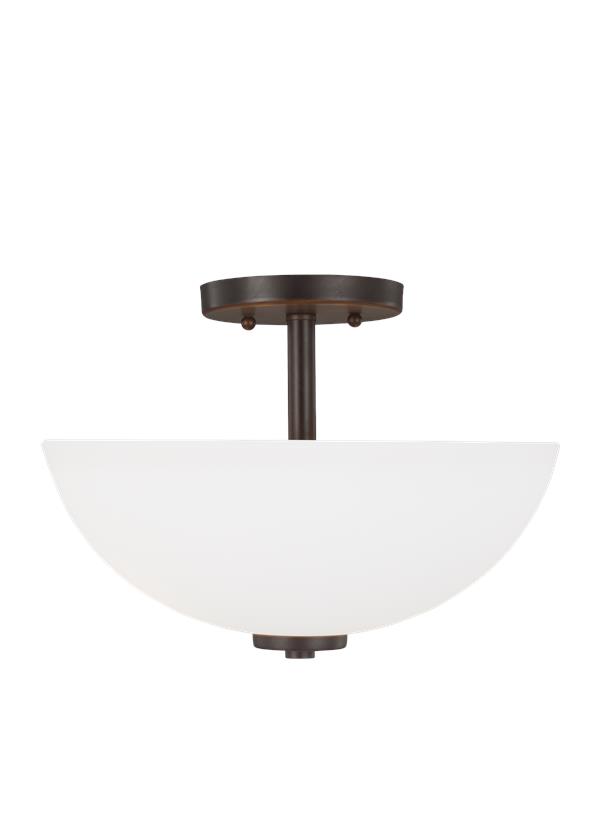

77160-710: Two Light Semi-Flush Convertible Pendant



Collection:  Oslo


Traditional iron forms and casual styling available in three finishes

2 A19 Medium 100 watt light bulbs

Assortment includes nine-, five-, and three-light chandeliers, pendants in four sizes, both flush and semi-flush ceiling fixtures, as well as one-, two-, three- and four-light wall/bath fixtures

Fixture is dual mount and may be installed semi-flush or as a pendant.

Easily converts to LED with optional replacement lamps

UPC #:785652077890

Finish:   Bronze (710)

Dimensions:

Diameter: 13 1/2''
Height: 11 1/4''
Weight: 5.7 lbs.
Height Flush: 10''
Overall Height: 133 1/2''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 100w Max. 120v - Not included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Chain - Steel - Bronze
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-1895)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 1       5 13 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 13/16      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 77160-710 1  785652077890  16.75 16.5 9.5 1.519 7.3 0 Yes
Master Pack 77160-710 0  10785652077897
NJ Pallet   40    48 40 73 81.111 292 No
NV Pallet   40    48 40 73 81.111 292 No
