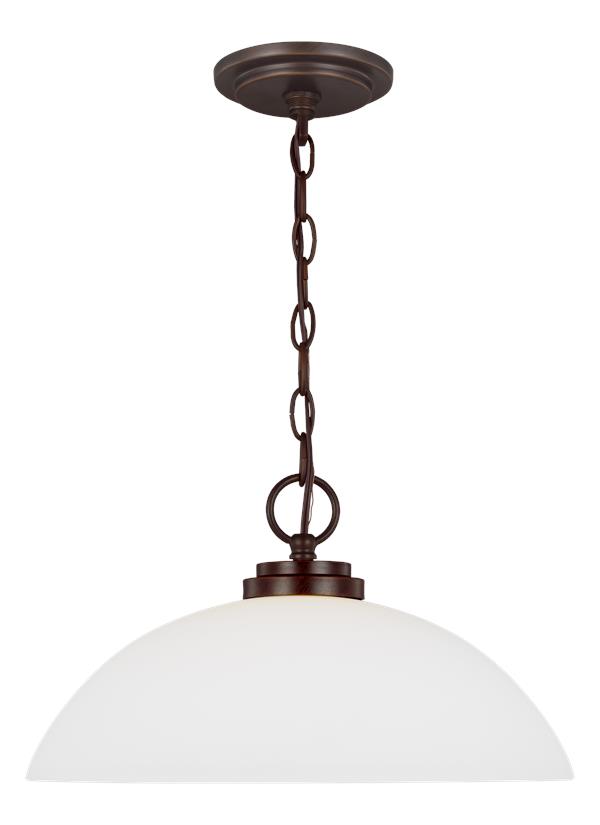

65160-710: One Light Pendant



Collection:  Oslo


Traditional iron forms and casual styling available in three finishes

1 A19 Medium 150 watt light bulb

Assortment includes nine-, five-, and three-light chandeliers, pendants in four sizes, both flush and semi-flush ceiling fixtures, as well as one-, two-, three- and four-light wall/bath fixtures

Easily converts to LED with optional replacement lamps

This product complies with TSCA Title VI

UPC #:785652077876

Finish:   Bronze (710)

Dimensions:

Diameter: 15 3/4''
Height: 8 3/4''
Weight: 6.6 lbs.
Overall Height: 131 1/4''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 150w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • This product complies with TSCA Title VI
  • Sloped ceiling mounting hardware included
  • Fixture is supplied with tamper proof screws
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Chain - Steel - Bronze
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (65160)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Glass Glass Etched / White Inside 1       5 3/8 15 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 13/16      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 65160-710 1  785652077876  18.25 18.25 7.75 1.494 7.4 0 Yes
Master Pack 65160-710 0  10785652077873
NJ Pallet   44    48 40 75.5 83.889 325.6 No
NV Pallet   44    48 40 75.5 83.889 325.6 No
