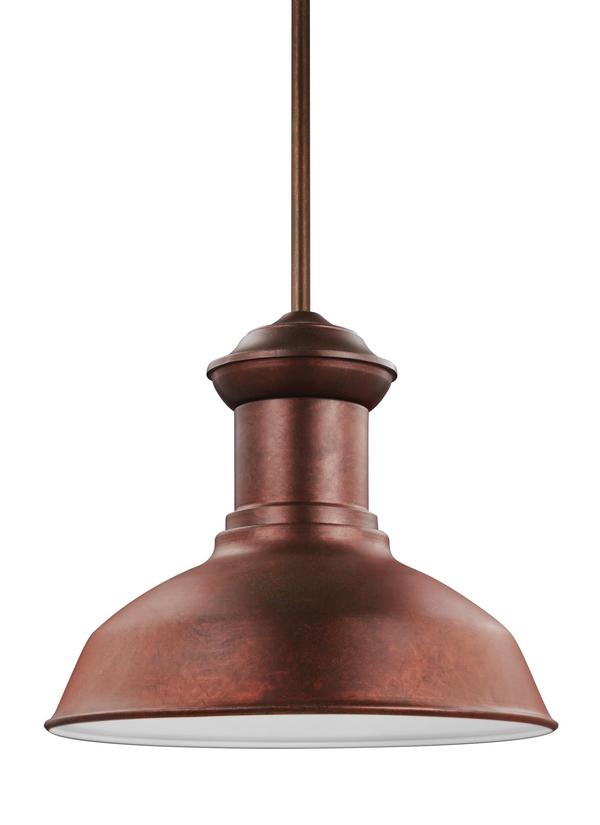

6247701BLE-44: LED Outdoor Pendant

	Collection: Fredricksburg
	Direct Replacement: 6247701EN-44
	UPC #:785652108655
	Finish: Weathered Copper (44)

Dimensions:


Diameter:	13 1/4''
Height:	11 5/16''

Overall Height:

56 1/8''

Wire:

120'' (color/Brown)

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Bulbs:

1 - Fluorescent GU24 Self Ballasted CFL 18w Max. 120v - included

Features:

ENERGY STAR® Qualified
Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
Offers energy saving fluorescent lighting
Sloped ceiling mounting hardware included

Material List:

1 Body - Aluminum - Weathered Copper

1 6" Stem - Steel - Weathered Copper

3 12" Stem - Steel - Weathered Copper

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990P6247701-FRB)

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/8			5 13/32

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97107	Frosted Glass Lens		Self Ballasted CFL	GU24	18	18	120v	10000	1100	2700	82

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6247701BLE-44	1	785652108655	16.25	16.25	14.25	2.178	5.1	250	Yes
NJ Pallet		24		48	40	72	80	122.4		No
NV Pallet		24		48	40	72	80	122.4		No
