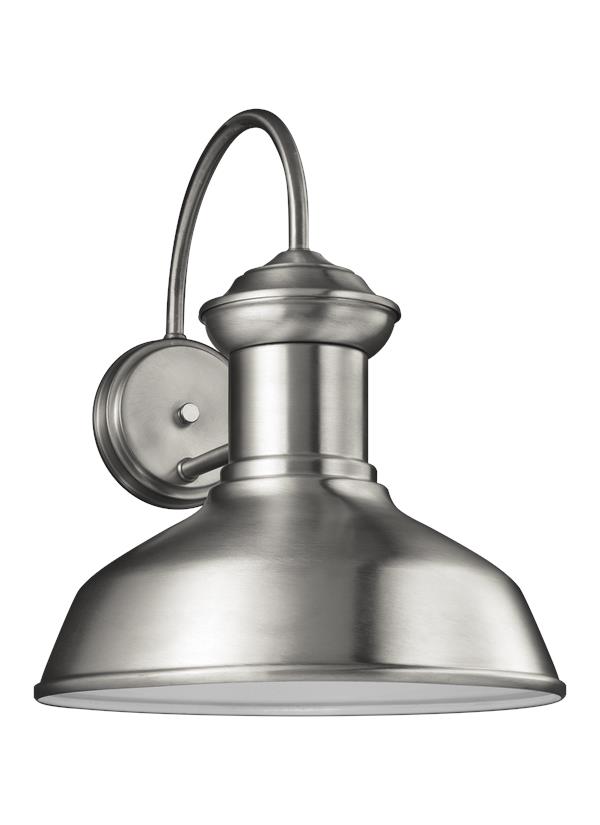

8647701-04: Large One Light Outdoor Wall Lantern



Collection:  Fredricksburg


Supplied with 6-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Designed for damp and wet environments allowing for direct water contact

1-year manufacturer warranty

Meets Title 24 energy efficiency standards

UPC #:785652108600

Finish:   Satin Aluminum (04)

Dimensions:

Diameter: 13 1/4''
Width: 13 1/4''
Height: 15 7/8''
Weight: 3.9 lbs.
Extends: 15 1/4''
Wire: 6'' (color/Black/White)
Mounting Proc.: Single Cap Nut
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Satin Aluminum
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_47701-FRB)
Trilingual (English, Spanish, and French) (8547701 8647701)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Aluminum Satin Aluminum 1       5 1/2 13 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     1 1/8  4 3/4  7 1/2  8 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8647701-04 785652108600  18.75 18.25 16.25 3.218 5.2 0 Yes
Master Pack 8647701-04 10785652108607
NJ Pallet   22    48 40 77 85.556 124.8 No
NV Pallet   24    48 40 77 85.556 124.8 No
