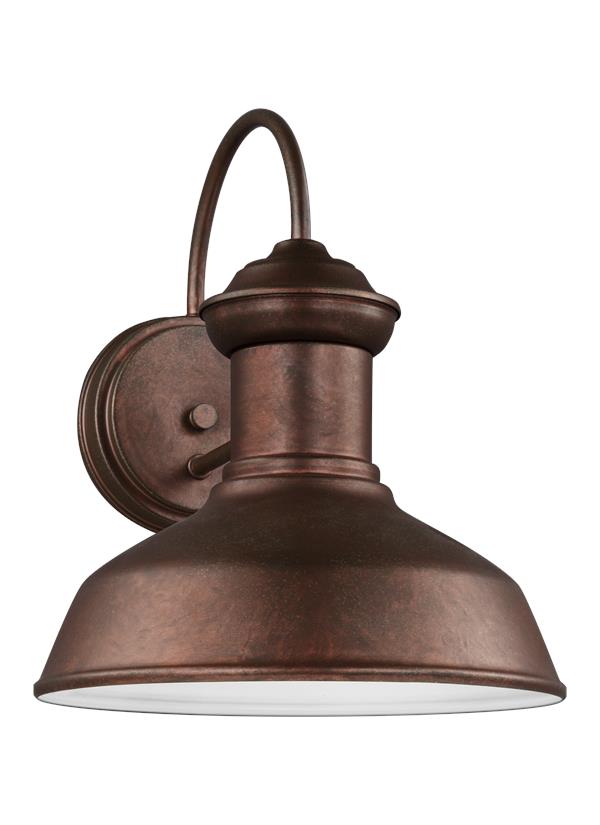

8547701-44: Small One Light Outdoor Wall Lantern



Collection:  Fredricksburg


Supplied with 6-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Designed for damp and wet environments allowing for direct water contact

1-year manufacturer warranty

Meets Title 24 energy efficiency standards

UPC #:785652108570

Finish:   Weathered Copper (44)

Dimensions:

Diameter: 10''
Width: 10''
Height: 11 15/16''
Weight: 2.6 lbs.
Extends: 11 5/8''
Wire: 6'' (color/Black/White)
Mounting Proc.: Single Cap Nut
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Weathered Copper
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_47701-FRB)
Trilingual (English, Spanish, and French) (8547701 8647701)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Aluminum Weathered Copper 1       6 1/2 10
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     1 1/8  4 3/4  5 3/4  6 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8547701-44 785652108570  14.75 14.75 12.25 1.542 3.2 0 Yes
Master Pack 8547701-44 10785652108577
NJ Pallet   50    48 40 77 85.556 160 No
NV Pallet   50    48 40 77 85.556 160 No
