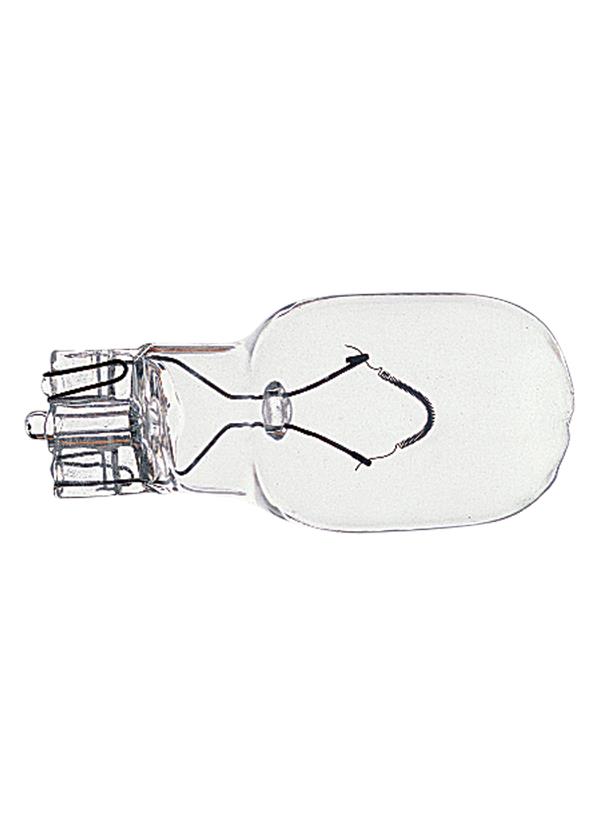

9777: 12w 12V Clear T5 Wedge Incandescent



Collections: Lx Wedge Base Lamps (Primary)
Lx Wedge Base Lamps (Primary)
Lamp Sources
Lamp Sources
Mini-Recessed Lamp Sources


Ambiance Lx Wedge Base Lamps provide illumination for a varied list of applications. Where maximum illumination is required, couple high wattage incandescent or xenon wedge base lamps with the Lx Lampholder 9433. Also for use with Xenon Disk Housings.

UPC #:785652977701
Dimensions:

Diameter: 19/32''
Length: 1 13/32"
Bulb Appearance: Clear  -  GLass Lens
Bulb Type: T5
Bulb Base: Wedge
Volts: 12
Watts: 12
Watts Consumed: 11.6
Watts Rated: 12
Hours Rated: 2000
Lumens: 120
Bulb Temp: 2750 °K
CRI: 90
Material List:
1 Bulb - Glass - Clear
Instruction Sheets:

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 9777 785652977701  0.6 0.6 1.4 0 0.006 85 Yes
Master Pack   2000  10785652977708  7 13.19 18.38 0.982 12 85 Yes
NJ Pallet   78000    48 40 55 61.111 468 No
NV Pallet   78000    48 40 55 61.111 468 No
