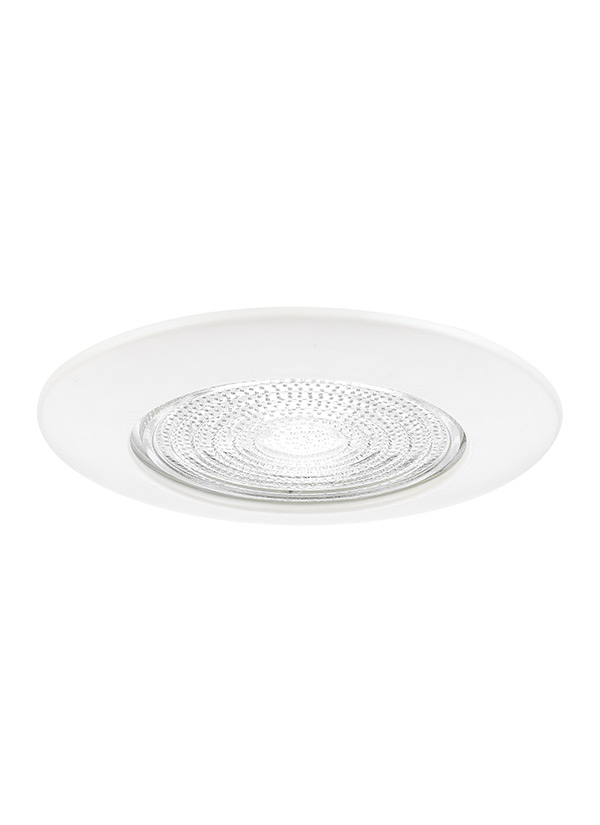

11055AT-15: 6" Fresnal Glass Shower Trim



Collection:  Recessed Trims


White ShowerTrim with Clear Fresnel Glass.

IC Airtight High Wattage: A-19 60w, Non-IC: A-19 60w, IC Airtight: A-19 40w, IC Airtight Shallow: A-19 40w

UPC #:785652110511

Finish:   White (15)

Dimensions:

Diameter: 8''
Height: 4 1/4''
Features:
  • Meets Title 24 energy efficiency standards
Material List:
1 Reflector - Aluminum - White
1 Trim - Aluminum - White
Safety Listing:
  Safety Listed for Wet Locations

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Lens Glass Clear 1
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 11055AT-15 785652110511  8.5 8.5 4.5 0.188 0.9 125 Yes
Master Pack   10785652110518  20 9 9 0.938 6 125 Yes
NJ Pallet   480    48 40 76.75 85.278 480 No
NV Pallet   480    48 40 76.75 85.278 480 No
