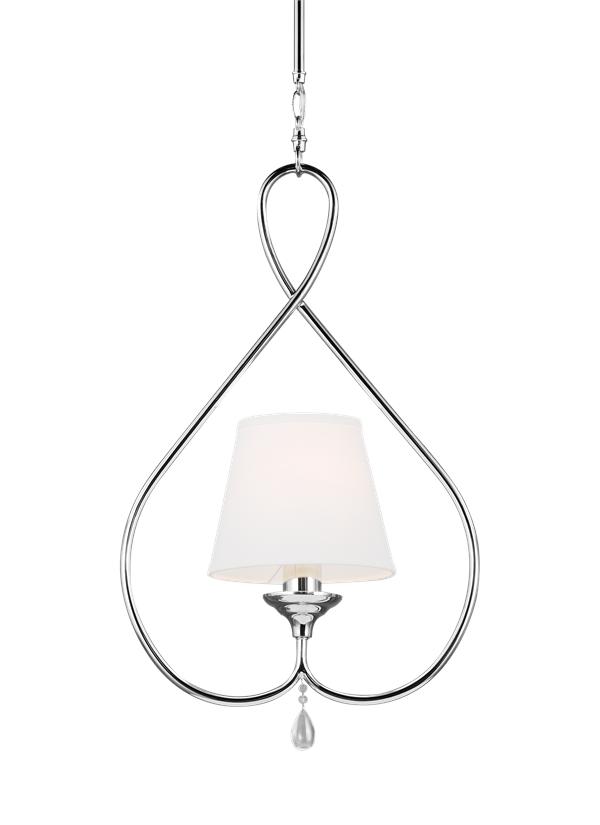

6110501BLE-05: One Light Mini-Pendant


Collection:  West Town

UPC #:785652275432

Finish:   Chrome (05)
Dimensions:

Length: 16"
Width: 8 3/8''
Height: 28 1/4''
Weight: 4.7 lbs.
Overall Height: 72 1/2''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Bulbs:
  1 - Fluorescent GU24 Self Ballasted CFL 13w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • Offers energy saving fluorescent lighting
  • Meets Title 24 energy efficiency standards
Material List:
1 Body - Steel - Chrome
1 6" Stem - Steel - Chrome
3 12" Stem - Steel - Chrome
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6110501BLE-WES)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Linen White Faux Linen 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97102 Frosted   Glass Lens   Self Ballasted CFL GU24 13 13 120v 10000 900   2700 81
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6110501BLE-05 1  785652275432  28.5 17 11.75 3.294 9.1 250 Yes
NJ Pallet   18    48 40 74 82.222 163.8 No
NV Pallet   18    48 40 74 82.222 163.8 No
