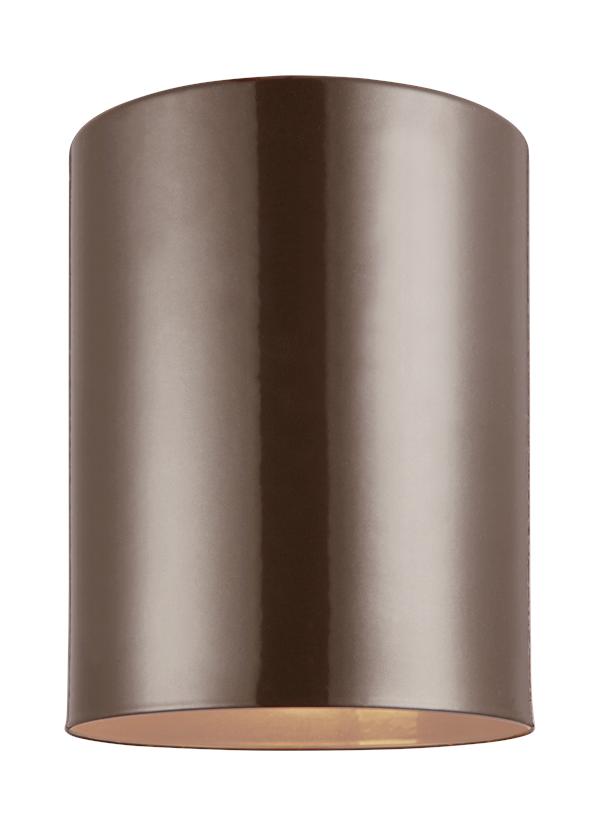

7813801-10: One Light Outdoor Ceiling Flush Mount



Collection:  Outdoor Cylinders


Supplied with 6-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

1-year manufacturer warranty

Meets Title 24 energy efficiency standards

UPC #:785652273872

Finish:   Bronze (10)

Dimensions:

Diameter: 5 1/8''
Height: 6 5/8''
Weight: 0.7 lbs.
Wire: 6'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Bulbs:
  1 - Medium BR30 65w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (7813801)
Trilingual (English, Spanish, and French) (7813801)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     5 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7813801-10 785652273872  7 7 9 0.255 1.15 0 Yes
Master Pack   12  10785652273879  21.6 14.4 18.75 3.375 18.1 0 Yes
NJ Pallet   240    48 40 77 85.556 362 No
NV Pallet   240    48 40 77 85.556 362 No
