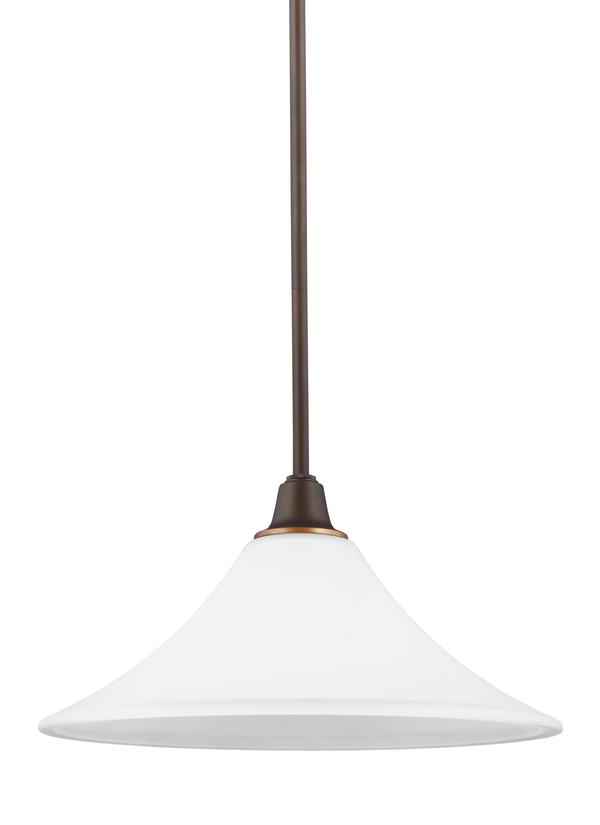

6513201-715: One Light Pendant


Collection:  Metcalf

Featured in the decorative Metcalf collection

1 A19 Medium 75 watt light bulb

Satin Etched glass

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652275180

Finish:   Autumn Bronze (715)
Dimensions:

Diameter: 15''
Height: 7 1/2''
Weight: 4.9 lbs.
Overall Height: 52''
Wire: 96'' (color/Brown)
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Autumn Bronze
1 6" Stem - Steel - Autumn Bronze
3 12" Stem - Steel - Autumn Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6113201-MET)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Glass Glass Satin Etched 1 G560175-619     5 3/4 15
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6513201-715 1  785652275180  18.25 18.25 9.75 1.879 6.7 0 Yes
Master Pack 6513201-715 0  10785652275187
NJ Pallet   40    48 40 77 85.556 268 No
NV Pallet   40    48 40 77 85.556 268 No
