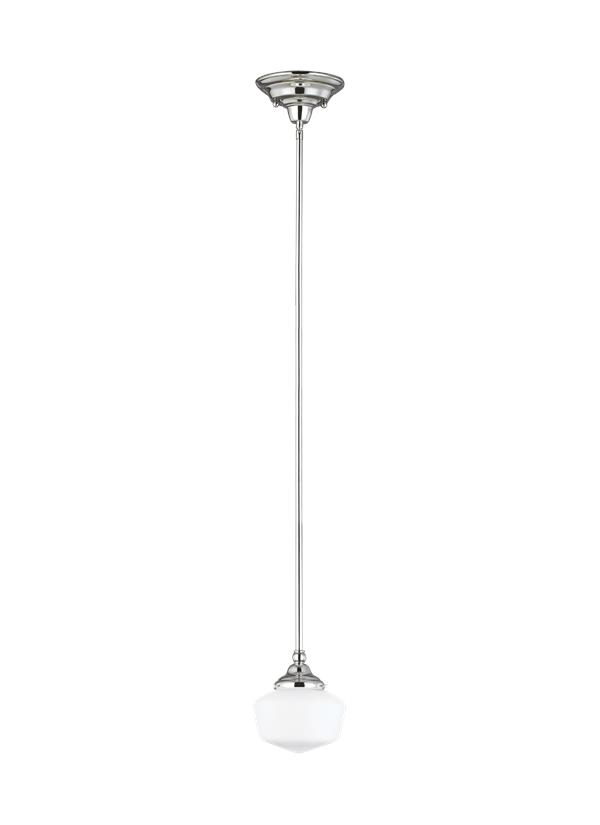

65436-05: Small One Light Pendant



Collection:  Academy


Supplied with adjustable 10-feet of wire for preferred length

Additional extension rods included for a do-it-yourself project and customized look

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652257667

Finish:   Chrome (05)

Dimensions:

Diameter: 6 3/4''
Height: 7 1/2''
Weight: 2.6 lbs.
Overall Height: 58 1/2''
Wire: 120'' (color/Clear Silver)
Chain: 12''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 60w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
3 12" Stem - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6543_-ACM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Glass Glass Satin White 1       5 6 3/4 3 1/4     6 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     6 5/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 65436-05 785652257667  16 9 7.25 0.604 4.2 125 Yes
NJ Pallet   120    48 40 72 80 504 No
NV Pallet   120    48 40 72 80 504 No
