82029-746: One Light Outdoor Post Lantern



Collection:  Kent

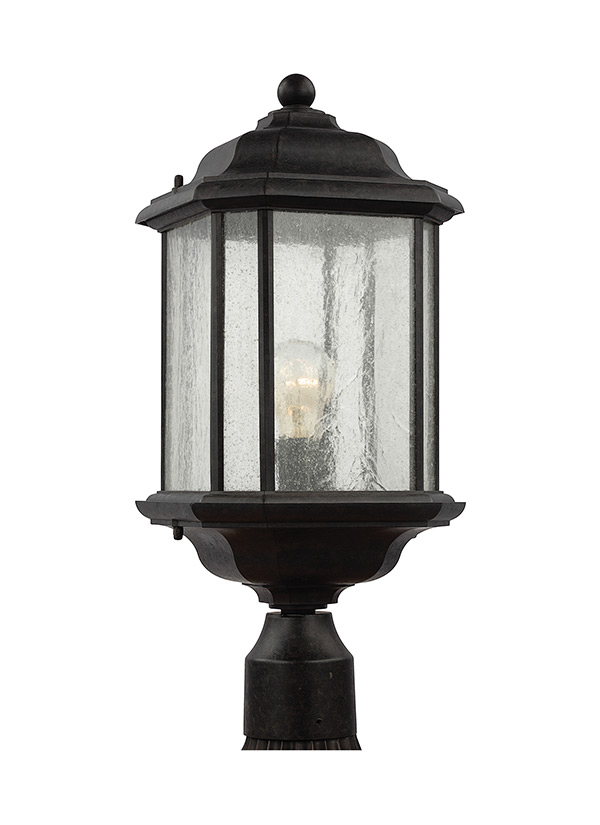

One Light Outdoor Post Lantern in Oxford Bronze Finish with Clear Seeded Glass

Outdoor post lantern finished in Oxford Bronze over die-cast aluminum with clear seeded glass. Fits 3" post (sold separately).

Design #: D20035

UPC #:785652820243

Finish:   Oxford Bronze (746)

Dimensions:

Length: 8 3/8"
Width: 8 3/8''
Height: 20 1/4''
Weight: 6.2 lbs.
Wire: 6 1/2''
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
1 - LED Medium A19 8w Max. 120v - Not included
1 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Oxford Bronze
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-841)
French (F-013)
Trilingual (English, Spanish, and French) (990OP82_29-KEN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear Seeded 4
Panel Glass Clear Seeded 4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 82029-746 785652820243  11.25 11.25 22 1.611 7.8 150 Yes
NJ Pallet   56    48 40 71 78.889 436.8 No
NV Pallet   36    48 40 71 78.889 281 No
