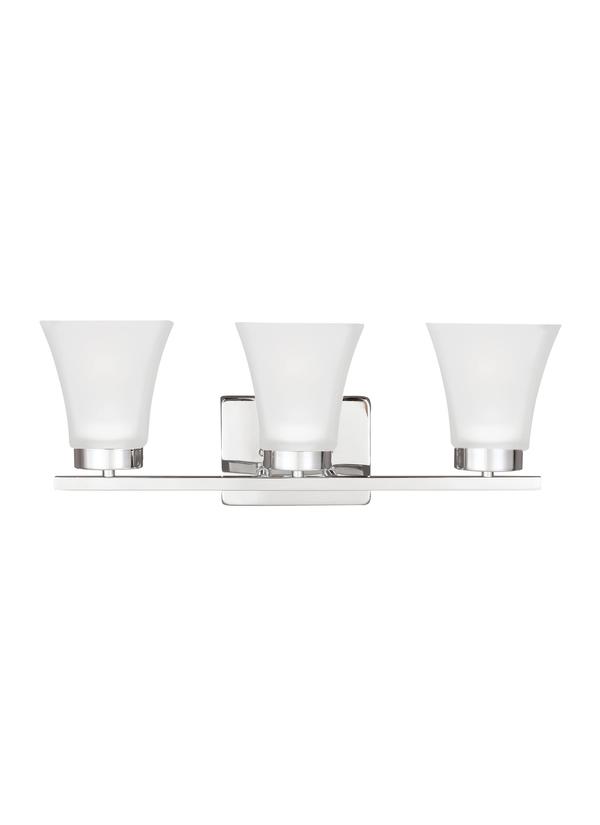

4411603-05: Three Light Wall / Bath



Collection:  Bayfield


UPC #:785652257865

Finish:   Chrome (05)

Dimensions:

Width: 20''
Height: 7 3/4''
Weight: 6 lbs.
Extends: 6 5/8''
Wire: 6'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W441160_-BAY)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin Etched 3 G560150-619 5 5 5
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 5/8  6 1/4  3/4    5 1/2  2 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4411603-05 785652257865  5 5 5 0.072 7.5 60 Yes
NJ Pallet   56    48 40 73 81.111 425.6 No
NV Pallet   56    48 40 72 80 422.8 No
