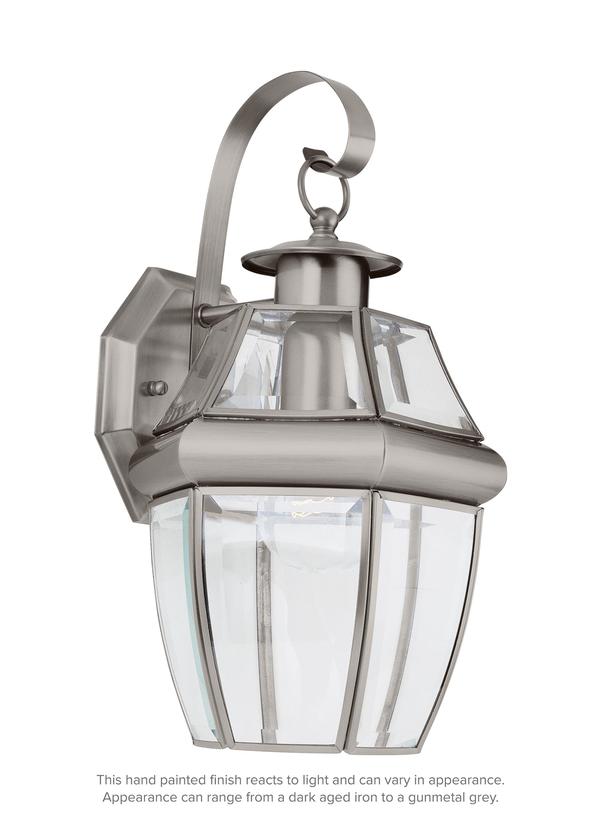

8067-965: One Light Outdoor Wall Lantern


Collection:  Lancaster

One Light antique brushed nickel Finish Outdoor w/ Clear Curved Beveled Glass Bound In Solid Brass

Curved Classic One Light Wall Lantern in Antique Brushed Nickel Finish and Clear Curved Beveled Glass Bound in Solid Brass.

Reference Fixture 8067-02

Featured in the decorative Lancaster collection

1 A19 Medium 100 watt light bulb

Clear curved beveled glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652806797

Finish:   Antique Brushed Nickel (965)
Dimensions:

Width: 7 3/4''
Height: 14''
Weight: 4.33 lbs.
Extends: 7 1/2''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Antique Brushed Nickel
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Curved Beveled 1       8 3/4 7 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 1/2  4 3/4  5/8    6 1/2  7 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8067-965 1  785652806797  10.5 10.5 16.75 1.069 5.95 0 Yes
Master Pack 8067-965 0  10785652806794
NJ Pallet   70    48 40 76 84.444 374.5 No
NV Pallet   70    48 40 78 86.667 385 No
