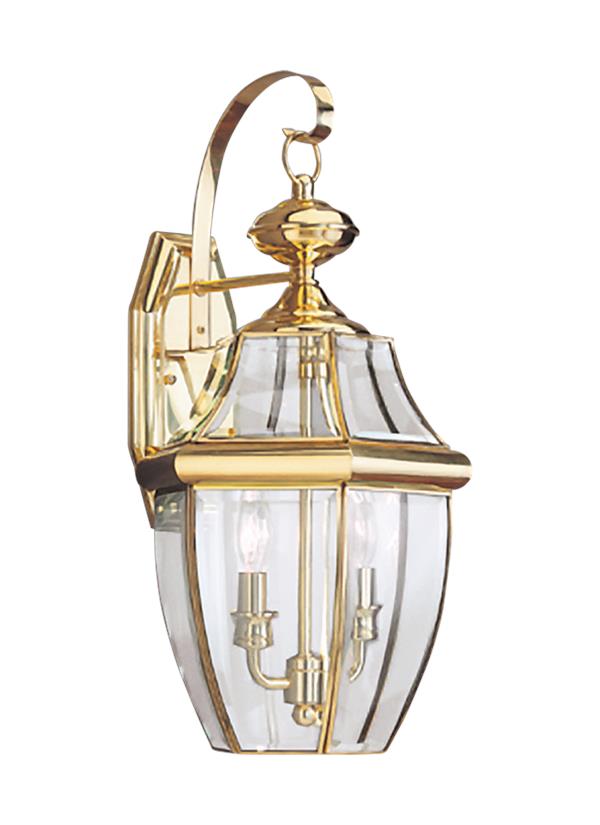

8039-02: Two Light Outdoor Wall Lantern


Collection:  Lancaster

Medium Solid Brass Classic Two Light Wall Lantern in Polished Brass Finish and Clear Curved Beveled Glass.

Solid brass classic two light wall lantern in Polished brass finish and clear curved beveled glass.

Featured in the decorative Lancaster collection

2 Torpedo Candelabra 40 watt light bulbs

Clear curved beveled glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652803925

Finish:   Polished Brass (02)
Dimensions:

Width: 10''
Height: 20 1/2''
Weight: 8.6 lbs.
Extends: 9 1/2''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  2 - Candelabra Torpedo 40w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Polished Brass
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Curved Beveled 1       12 3/4 10
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 9 1/4  4 1/2  3/4    9 1/2  11
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8039-02 1  785652803925  11.75 11.5 23.5 1.838 10.75 0 Yes
Master Pack 8039-02 0  10785652803922
NJ Pallet   36    48 40 72 80 387 No
NV Pallet   36    48 40 72 80 387 No
