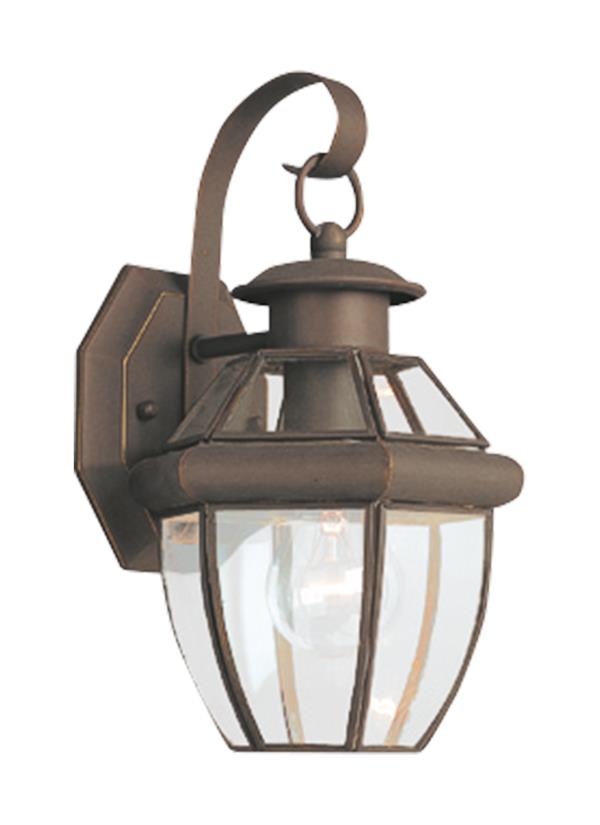

8037-71: One Light Outdoor Wall Lantern



Collection:  Lancaster


Small Solid Brass Classic One Light Wall Lantern in Antique Bronze Finish and Clear Curved Glass.

Antique Bronze Brass Outdoor Light w/ Clear Curved Glass Bound In Solid Brass

UPC #:785652803710

Finish:   Antique Bronze (71)

Dimensions:

Width: 7''
Height: 12''
Extends: 7''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
1 - LED Medium A19 8w Max. 120v - Not included
1 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Antique Bronze
1 Candle Cup - Brass - Antique Bronze
1 Bracket - Brass - Antique Bronze
1 Canopy - Brass - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear Curved Beveled 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 1/2  4 3/4  5/8    5 3/4  6 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8037-71 785652803710  8 8 14.75 0.546 3.35 125 Yes
NJ Pallet   84    48 40 72 80 281.4 No
NV Pallet   135    48 40 72 80 453 No
